The WDM AR series guide roll system is the key to successful angle bending. WDM machines have guide roll adjustment systems that allow the user to adjust the rolls in all ways necessary to obtain good work pieces. The small/economy machines have manual adjustments via acme screws and handwheel/worm gear arrangements. Machines 4x4 and larger have 6 way power guide rolls for optimal performance. The AR series is capable of rolling angle, flat bar, square bar, tee, round bar, pipe, tubing, channel, and I-bea

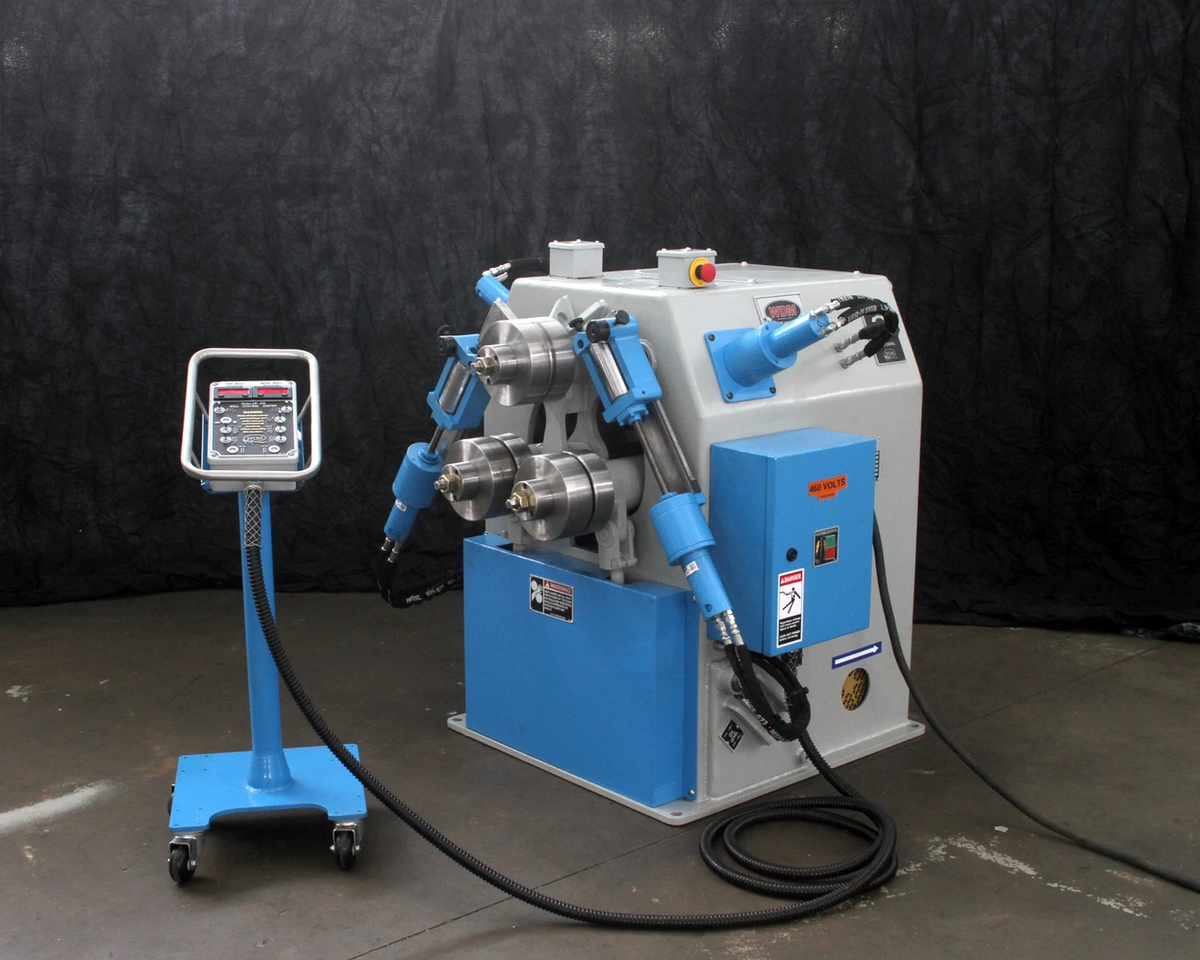

WDM Model AR-22 Hydraulic Angle Bending Machine
Capable of rolling angle, flat bar, square bar, tee, round bar, pipe, tubing, channel, and I-beam in a vertical or horizontal position
Brand: WDM
Model AR22
Type: Angle Rolls
Control: BETA 3
The Beta 3 comes standard with the AR-22, AR-23, and AR-31 at no charge. The Beta 3 pendant control has pushbuttons for roll adjustment and roll rotation. It also comes with 2 - LCD digital readouts to indicate roll postition.
Standard Horsepower: 5 hp
Roll Diameter: 7″
Bending Pressure: 15 US Tons
Main Shaft Diameter: 1.88″
FPM Rolling Speed: Approximately 14
Drive Type: Mech/Spur/Hyd(3 roll drive)
Guide Roll Adjustment: 6-Way Power
Horizontal / Vertical: Both
Dimensions: 38″ L x 48″ W x 42″ H
Weight: Approximately 2,000 lbs.
The rollers on the AR series can be configured to bend in a vertical or horizontal position.
Unitized steel construction
Flame hardened alloy steel shafts and arbors
Total hydraulic operation
Instant start/stop/reverse
2 speed/variable speed
1 set universal dies; rolls:
Angle leg in and out
Tee bar leg in and out
Flats on edge and on flat
Square and small rounds
Accurately machined and hardened dies
3 roll drive (all machines except 4 roll)
Roving pendant control
DRO to show roll position
Electrics to NFPA specifications
24VDC control circuit
Safety stop/emergency stop mushroom buttons
Overload protection
TEFC main motor
Quiet integrated hydraulic system
Painted haze grey epoxy and blue enamel
sealed spherical roller bearings on all main points
Non-lube, minimum maintenance technology throughout
Heavy gear drive with very strong efficient tooth profile, most gears cut in our own shop.
Made in USA
