WDM K-SERIES | Rolls, Powered Inch
Have one to sell?
New

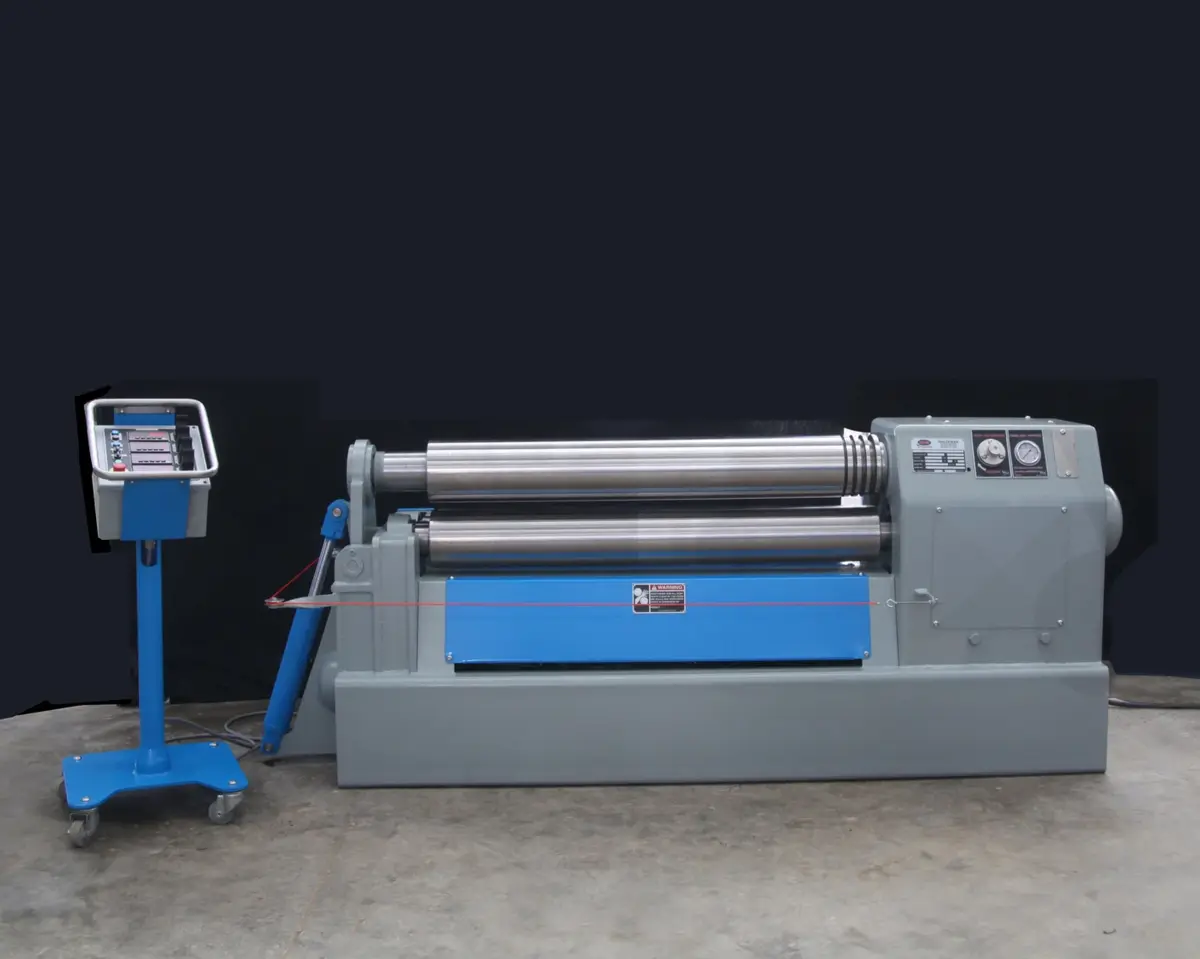

The WDM K series hydraulic initial pinch plate bending machine; models K-5 to K-12 are well designed, robust machines that feature a wedge actuated pinch roll positioning system. This provides for an accurate and parallel pinch roll position. The rear bending roll is positioned with heavy duty master and slave hydraulic cylinder arrangement. The accurately machined rolls turn on sealed spherical roller bearings with extended maintenance period of five years or more, in most cases. The heavy fabricated steel main frame contains a hydraulic reservoir for a quiet integrated hydraulic system. In designing the system, much attention is given to the efficiency of components which results in a cool operation. The Beta 3.2 roving pendant control with pushbutton controls and DRO's to show position of the rolls comes standard. If however you prefer a more sophisticated machine we offer many options and enhancements in control styles and position indication. If you have a special need beyond this we are glad to accommodate it.
1045 steel rolls machined to T63 micro inch finish.
Crowned rolls
Total hydraulic operation
Instant start/stop/reverse
2 roll drive
3 phase 230/430 volts 60hz electrics
Electrics to NFPA-79 specifications
24VDC control circuit
Roll speed infinitely variable 0-22 FPM
Safety/Emergency stop cable on 3 sides of the machine
Overload protected
TEFC main motor
Quiet hydraulic system
Haze gray epoxy and blue enamel finish (V.O.C. compliant)
Sealed spherical roller bearings on all main points
Bending roll tilts for cone rolling
Accurately machined, compact, streamlined, and all welded steel frame
Rolls driven direct via hydraulic motor or gear speed reducers
Roving pendant control
DRO to show roll position
Horizontal starting groove in pinch roll
Hydraulically actuated drop-end
1 year warranty
Made in USA
OPTIONS:
Hardened only rolls 55-60 Rc. (1045 flame hardened) T63 micro inch finish
Hardened and polished rolls 55-60 Rc. (1045 flame hardened) G32 finish
Other alloys and finishes are available
Additional squaring grooves in lower rolls
Circular grooves in rolls for rolling rods or sheets with wire edges 3/8, 1/2, and 5/8
Other special circular grooves for extrusions etc.
Dual guarded foot pedal for roll rotation and pinch roll up/down
Cone attachment
Pinch roll trim
Third roll drive
Control upgrade
Non-electric version
Side supports
Overhead supports, feed tables, and ejectors
Special electrics
Special customer-supplied paint
Light curtain safety guarding
