Kenco Model 5K-7-150, 5 Ton Press
Have one to sell?
New
The Kenco Kompac press is a versatile, small press that provides a reliable, cost-effective choice for crimping, punching, blanking, forming, bending and stamping applications. Available in a 3 or 5 ton model, Kompac presses are designed for fast set-up and operation in virtually any application or process. The "C" frame design makes die changes simple and fast, with larger throat and bed sizes to accept larger die sets. The flywheel and connecting rod are fully enclosed for safety, yet readily accessible for manual cycling and maintenance. All Kenco Kompac presses have rugged, rib reinforced frames which minimize deflection and die wear for higher part quality and longer tool life. Fully ground "V" ways ensure accurate, consistent tool alignment. Our exclusive roller clutch is engineered of high strength, heat treated steel alloy for dependable high-speed, long-term operation.

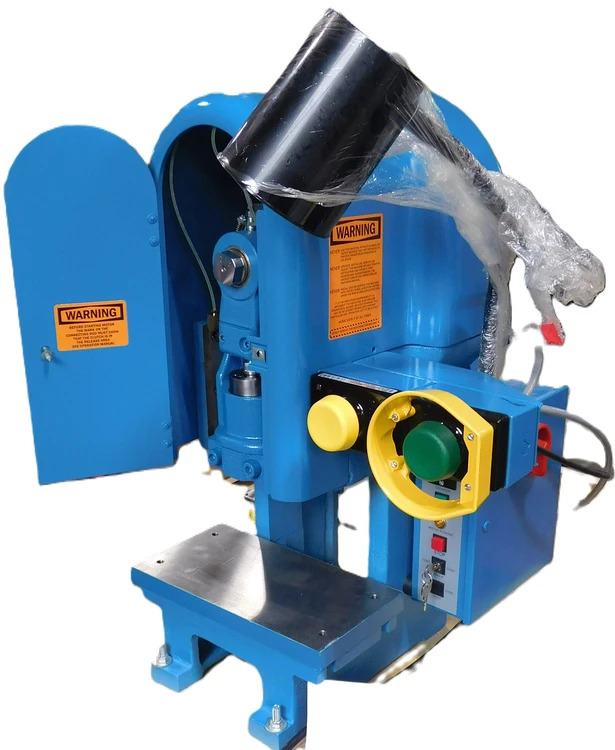

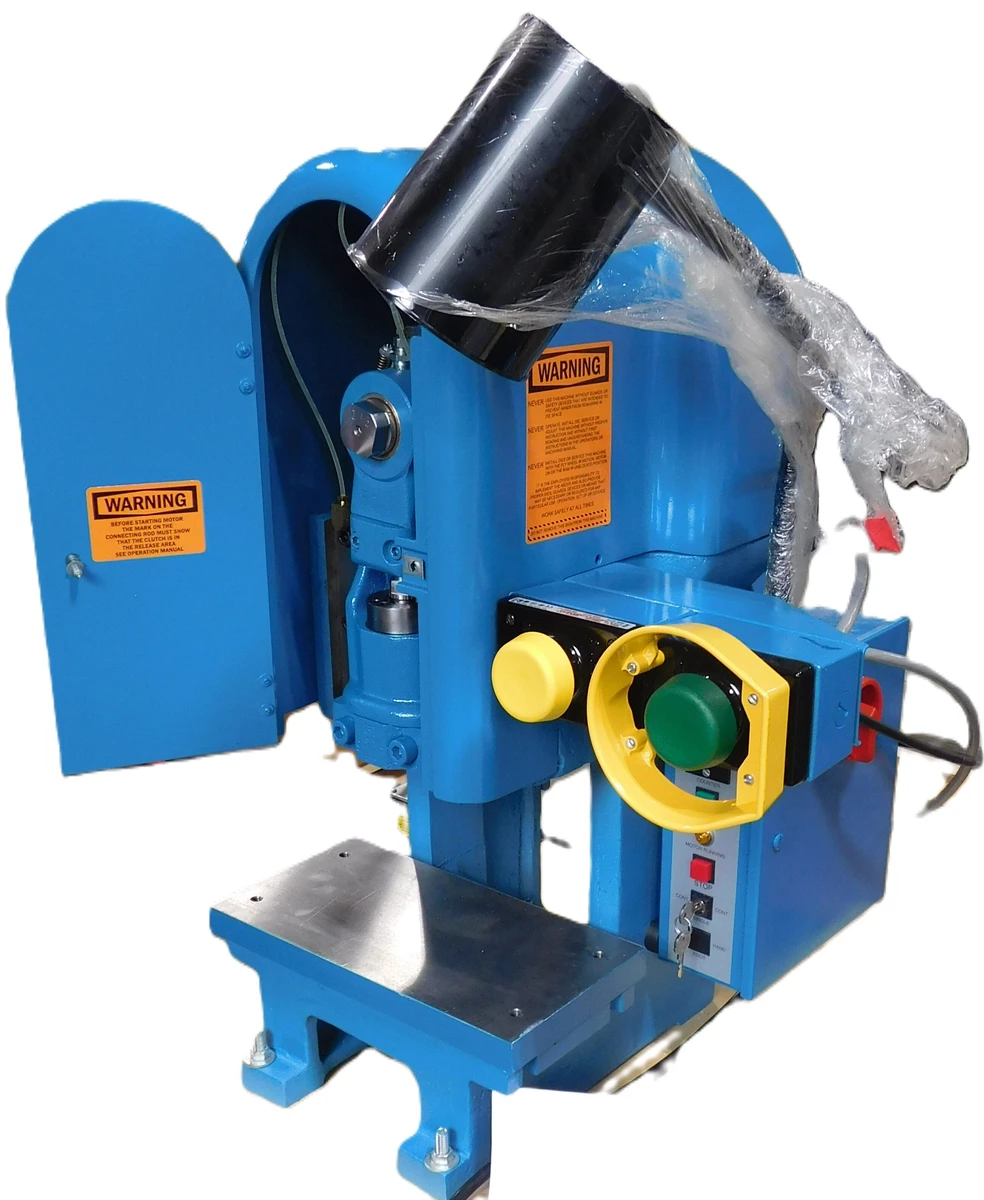

(New) Kenco Model 5K-7-150 Standard 5 Ton Kompac Press
SPECIFICATIONS:
Brand: Kenco
Model: 5K-7-150
Type: Punch Press
Capacity: 5 Toms x 1-1/2"
Tons: 5
Frame Opening (Ram to Bed) 7"
Stroke 1-1⁄2” Standard (Non-Standard Options: 1⁄4” - 2”) **
Strokes Per Minute (Continuous) 285
Shut Height (SDAU) 5 1⁄2"
Ram Adjustment 1"
Throat Depth (Centerline of Ram to Frame) 4 1⁄4”
EQUIPPED WITH:
Roller Clutch with Solenoid Trip
Solid State Anti-Repeat Control
Magnetic Motor Contactor with Overload Protection * Magnetic Contactor to Energized Solenoid
Lockable Safety Disconnect Switch
Stroke Counter with Reset
Top Start Feature
Motor 1/2 HP, 1725 RPM, 115V-1P-60 Hz. including pulley and belt
Full Flywheel and Connecting Rod Enclosure * Mechanical Drag Brake
Enclosure Door with Safety Screw Lock
Painted Safety Blue
Eyebolt for lifting
Weight: 280 Lbs
Dimensions: 21” x 28.25” x 11"
TERMS:
FOB Tonawanda, NY - Full payment due at the time of order. Lead time apron 4-6 weeks after order. Optional equipment may require additional lead-time. Submitted orders that are subsequently cancelled by the customer may be subject to cancellation fees. Quotation Valid for 30 Days
OPTIONAL EQUIPMENT:
Bolster Plate [1" Thick]
Heavy Duty Shielded Palm Switches
(Not considered a Safety device)
Manual 3 point Lubricaton
Automatic 3 Point Lubricator
Floor Stand
Work-light on Flexible Conduit, mounted on Control Box
Continuous Operation Package Includes:
-Key-switch for Supervisory Control of Continuous or
- Single Operation. Heavy-duty Shielded Palm Switches with Top Stop
Key-switch for Selection of Foot or Two Hand Operation
Variable Speed Package:
-5K: 95 to 285 SPM; 1 HP 3 Phase Motor
-AC Inverter with "Dial In" Speed Selector & 3 Preset Speed Settings
Footswitch with Full Shield and 8 Foot Cord
Heavy-duty Footswitch with Full Shield
** Stroke Lengths: 1-1⁄2” Standard (Non-Standard Options: 1⁄4” - 2”) -Must specify stroke at time of order, additional charges apply for non-standard stroke.
-Adjust Shut Height when changing stroke.
