Equipment
Press Room
Molding Presses
Trident 50 Ton Compression Molding
Sold

Trident 50 Ton Compression Molding

Molding Presses
Manufacturer:
TRIDENT
Model:
COMPRESSION MOLDING
Year:
1998

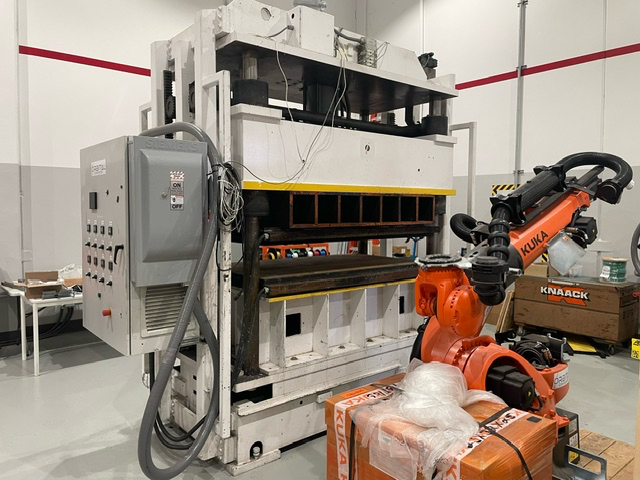

Used 50 Ton Trident Molding 4-Post Type Compression Molding Hydraulic Press with 44” x 89” Bed, 60 HP Motor
Tonnage50 T45.359 t
Stroke18"457.2 mm
Dimensions10' x 10'6" x 6'6"10' x 10'6" x 6'6"
Weight2000020000

Make - Trident Molding
Model - Compression Molding
Type - 4-Post Hydraulic
Condition - Used/Reconditioned 2018
Year - 1998

MAX. CAPACITY - 50 TON
MAX. STROKE - 18"
MAX. DAYLIGHT TO BED - 54" (34" OVER 20" X 70" X 44" RISER
OVERALL BED & RAM - 89" RL X 44" FB (23" FLOOR TO BED)
DISTANCE BETWEEN POSTS - 71" RL X 31" FB
USABLE BED & RAM AREA - 71" RL X 44" FB OR 89" RL X 31" FB
POSTS SIZE - 4” DIA
CYLINDER SIZE - 1-9” MILLER CYLINDER
HYDRAULICS - CROWN MOUNTED HYDRAULICS
ELECTRICS - 60 HP MOTOR, VICKERS VANE & PISTON PUMPS, "UPDATED" ALLEN BRADLEY 5/04 PLC CONTROLLER
APPROX. DIMENSIONS - PRESS - 10' HIGH, 10'9" RL, 6'6" FB + PRESS WITH TANK - 17'10" HIGH
APPROX. WEIGHT - 20,000 LBS.

CAN BE OUTFITTED WITH HEATED PLATENS AFTER MARKET
*SAFETY LATCHES ON RAM
20" HIGH X 70" RL X 44" FB RISER ON BED!RACK & PINION GUIDED RAM
FLOOR STANDING BASE

TERMS:
Location Sunnyvale, CA - “AS-IS, WHERE-IS”, with all faults, off seller’s floor. Full Payment due prior to shipment.Buyer pays for removal. Immediate availability, subject to prior sale. Under power and available for in-person inspection. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
