Sold

GMC 4' x 10 GA Box & Pan

Brakes, Box & Pan Powered
Manufacturer:
GMC
Model:
HBB-0410
Year:
2022
Serial #:
HBB-0410

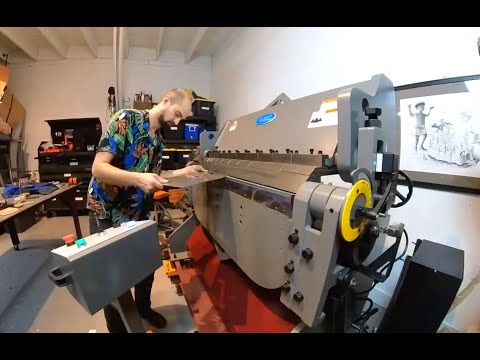

The GMC HBB-0410 is a heavy duty hydraulic box and pan brake; constructed of steel for maximum rigidity. Equipped with a robust and quiet German Rexroth hydraulic logic system to clamp your workpiece with ease. Our box and pan brakes are made for simple operation with a conveniently located control panel to place on either side of the hydraulic brake.
Capacity (ga)10 gauge10 gauge
Overall Length4'1.2 m
Dimensions67" x 46" x 67"67" x 46" x 67"
Weight4,100 lbs.4,100 lbs.

Max Bending Length: 4’

Bending Capacity:
Mild Steel - HRS (tensile 60K PSI) 10 Ga.
Stainless Steel (tensile 85K PSI) 12 Ga
Soft Aluminum (tensile 28K PSI) 1/4"

Hemming max thickness: 24 Ga.
Bend Degree: 135 Degrees
Max. Box & Pan Depth: 153mm=6.02”
Large Beam Opening: 3"
Manual go-to back gauge: 26”
Oil tank capacity 10 gal.
Hydraulic oil: Shell #68 or equivalent
Main Motor 5 HP, 3 Phase
Prewired: 220V/15AMP
Optional: 440V/10AMP

Machine weight 4,050 lbs.
Shipping weight 4,100 lbs.
Machine dimensions 67" x 46" x 67"
Shipping dimensions 80” x 40” x 65”

Virtually New Condition.

Location, Oakland, CA
