DOALL DC-330NC 13" x 15"

Band Saws, Horizontal Dual Column
Manufacturer:
DOALL
Model:
DC-330NC
Year:
2014
Rect-Cap (H)13"330.2 mm
Rect-Cap (W)15"381 mm
Dimensions89 X 87 x 56″89 X 87 x 56″
Weight4410 lbs4410 lbs

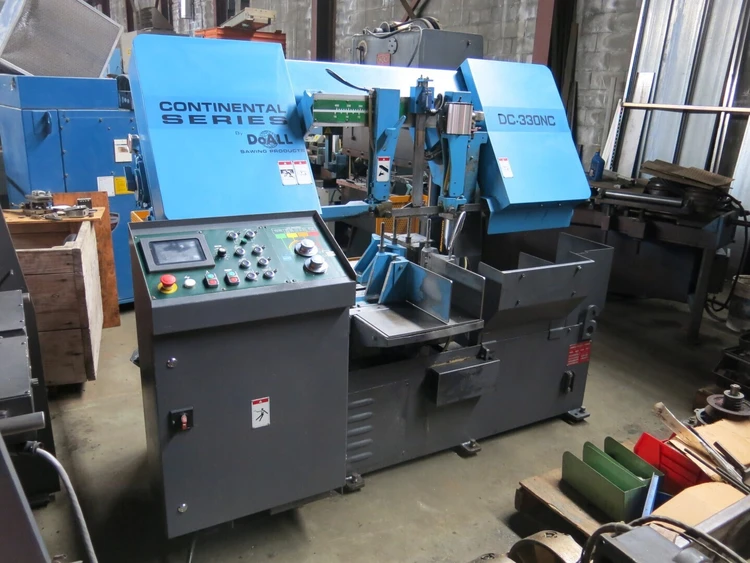

DoAll DC-330NC Automatic Horizontal Bandsaw

Brand - DoAll DC-330NC
Model - DC-330NC
Year - 02/2014

Cutting Capacity Round: 13″ (330mm)
Cutting Capacity Rectangle: 15-3/4 x 13″ (400 x 330 mm)
Bundle Capacity Maximum: 14-1/2 x 6-5/8″ (370 x 170mm)
Bundle Capacity Minimum: 6-1/2″ x 2″ (165 x 170mm)
Band Saw Blade: 1-1/4 x 0.042 x 167″ (34 x 1.1 x 4242mm)

Blade Speed: 52-430 fpm (16-128mpm)
Band Drive: 5 hp (3.75kW)
Hydraulic Pump: 1 hp (.75kW)
Hydraulic Tank Capacity: 16 gal (60 lit)
Coolant Pump: 1/6 hp (0.12kW)
Coolant Tank Capacity: 24 gal (90 lit)
Automatic Index Length Single: 19.68″ (500mm)
Automatic Index Length Multiple: 177.16″ (4500mm)
Material Pass Line Height: 27-1/2″ (700mm)

- Nice Condition, All original paint!
- Comes with a section of roller- Approximately 7′ long
- Chip Auger

** Video upon request

TERMS:
FOB New Jersey - “AS-IS,WHERE-IS” off seller’s floor, Full Payment due prior to shipment. Immediate availability, subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity. Price includes loading.
