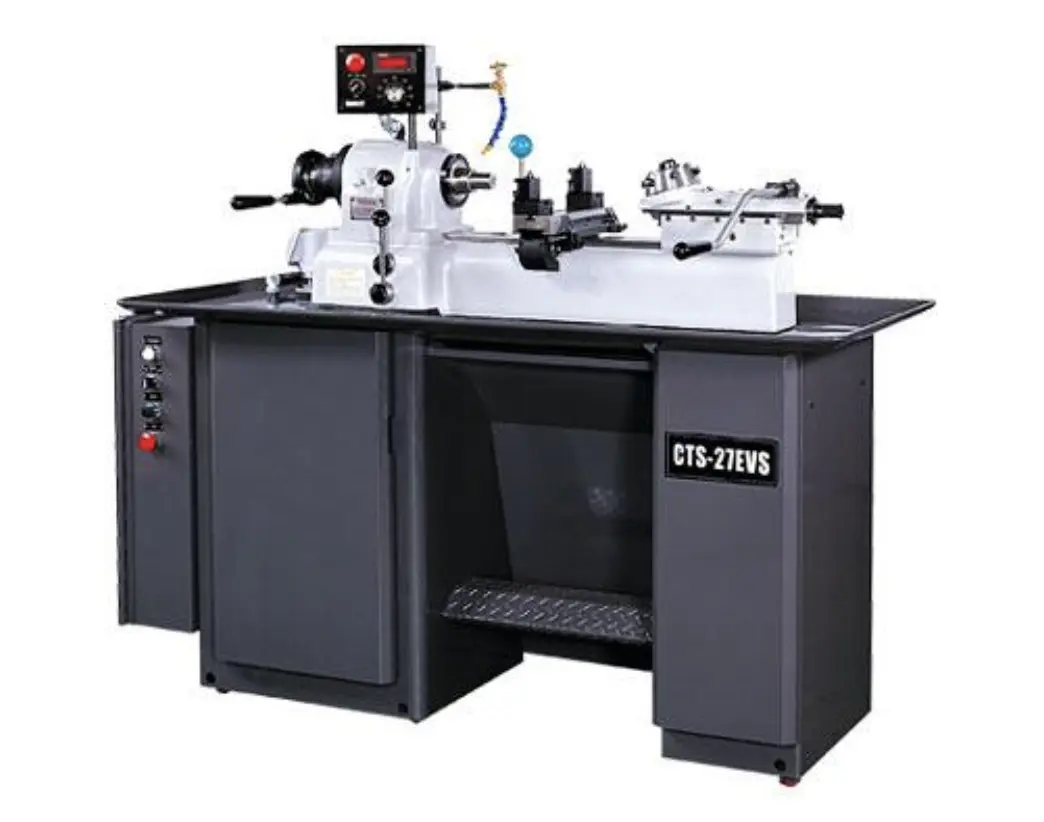

KENT CTS-27EVS PRECISION LATHE

Brand: KENT USA
Model: CTS-27EVS
Type: Precision Lathe
Year: New

0-4000 infinitely variable spindle speeds using electronic vector drive
1-1/16” 5C thru-collet capacity
Induction hardened and ground alloy steel bedways for extra longevity
Automatic indexing six position turret;
Built-in coolant system;
Double tool cross slide with wedge type tool posts and blocks

Swing over bed - 9” (229 mm)
Double tool cross slide travel - 3-3/4” (95 mm)
I.D. of turret head - 5/8” (15.875 mm)
Turret slide travel - 4” (101 mm)

Spindle speeds - Inf. Variable
Spindle speed range - 0-4000 rpm
Spindle nose taper (I) - 5C (10º)
Spindle nose taper (O) - 4º
With jaw chucks - 5” (125 mm)
With round 5C collets - 1-1/16” (27 mm)
With hexagon 5C collets - 7/8” (22 mm)
With square chucks - ¾” (19 mm)
With Step chucks - 1-1/16” – 6” (27–152mm)

Main motor - 3 HP (3-phase or 1-phase)
Coolant pump motor - 1/4 HP (3-phase or 1-phase)

Overall dimension - 67” x 28” x 58” (LxWxH)
Packing dimension - 73” x 36” x 75” (LxWxH)

Net weight - 990 lbs
Gross weight - 1364 lbs
