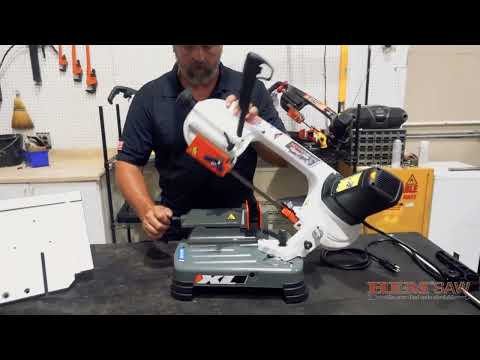

HE&M 784XL - 4.7" x 4"

Have one to sell?
(800) 721-9793
info@norcalmachinery.com
Have one to sell?

Overview

Type:
Band Saws, Benchtop
Manufacturer:
HEM
Model:
784XL
Status:
For Sale
Rect-Cap (H)4"101.6 mm
Rect-Cap (W)4.7"119.38 mm
Power1.6 hp1.2 kW
Blade Width0.5"12.7 mm

BRAND: HE&M SAW
MODEL: 784XL
TYPE: BANDSAW, BENCH TOP

Main Capacity: 0-4.7" W x 0-4" H
Blade: 4’-8" L x .5" H x .025"
Motor: 1.6 HP

Square Capacity - 4" (Square)
Round Capacity - 4.7" (Diameter)
Bar-feed - N/A
Operation Type - Manual Pull-Down
Power Source - 115V Electrical Motor Requirement
Bandsaw Blade Speed - Variable
Bundle Cut? - No
Weight - 39 lbs

One-Way 45° Miter
Vise - Manual
Manual Pull-Down
Manual Miter
Easy Clutch Blade Tension
Adjustable 19.6" Stop
Dry Cutting
Easy to Transport w/ Arm Locking Pin.
Variable Blade Speed
115V Electrical Motor Requirement
1.5 HP Motor - 10.4 Amps

Options:
Work Table (Allows Saw to be Used as a Vertical Saw)
Gonimeter
Jobby Stand
