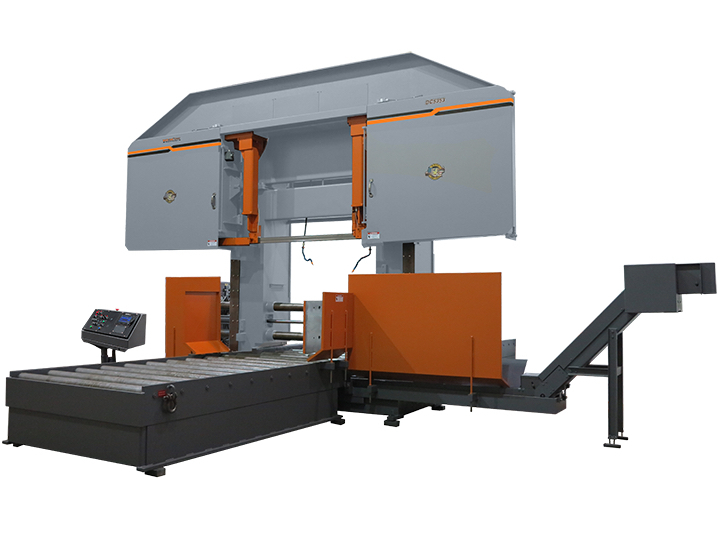

HE&M Model DC5353
Have one to sell?
New
The DC5353 is operated using a touch screen control in a pedestal mounted console and can be operated in manual or semi-automatic modes. Full stroking variable-pressure vise and powered guide arm are standard along with other features. Active Cut Watcher® is standard and options are available.
Main Capacity: 0-53" W x 0-53" H
Bar-feed: N/A
Blade: 40' 0" L x 2.625" H x .063"
Motor: 30 HP
Hydraulic Motor: 5 HP
Operation: Semi-Automatic
Specifications:
Rectangular Capacity 0-53" W x 0-53" H
Square Capacity 0-53" (Square)
Round Capacity 0-53" (Diameter)
Bar-feed N/A
Motor 30 HP
Hydraulic Motor 5 HP
Operation Type Semi-Automatic
Power Source Hydraulic
Blade Type Bandsaw
Blade Size 40' 0" L x 2.625" H x .063”
Dual Column - Heavy Duty Construction
Bandsaw Blade Speed N/A
Bundle Cut? No
Pedestal Mounted Control Console w/ 9" Touch Screen
Industrial IOT Ready - MTConnect Output
Servo Controlled Traverse (SCT)
8' Powered Base
Vise - Full Stroking Main
Adjustable Clamping Force
Carbide Blade Guides
Active "Cut Watcher®" System
Guide Arm - Powered
Variable Blade Speed w/ Readout on Touch Screen
Powered Blade Tension
hadow Light System
Coolant System - Flood w/ Wash-Down Hose
Blade Brush
Two-Hand Operation Controls
Broken Blade Function
Automatic Blade Idle
Blade Change Interlock
Safety Guards
220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
Options:
Chip/Swarf Removal System - Chip Conveyor
3-1/8" Blade Option
Remote Diagnostics
Cold Weather Package
Hydraulic Tank Heater
Additional Sections of Tabling
Specialized Material Handling
Made in the USA
Factory Set-up and Training
Formal Factory Quote Available
