Cincinnati 4316 16' x 3/8:
Have one to sell?
ConditionUsed
1 available

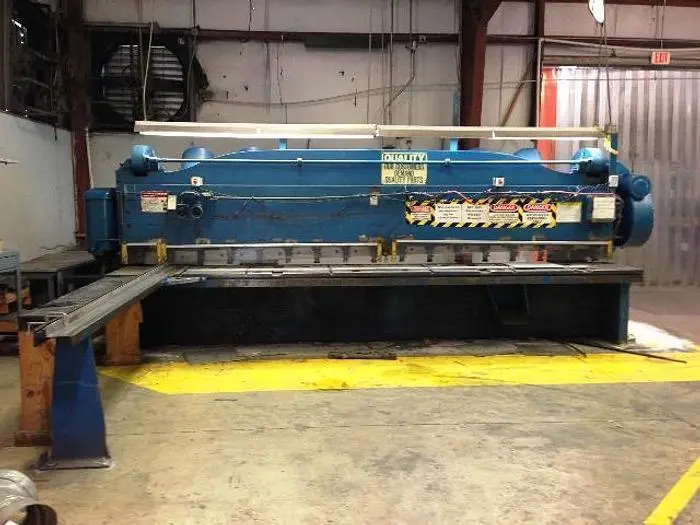

Cincinnati Model 4316 mechanical Shear, 16' x 3/8" Capacity, 48" Backgauge, 20 HP motor, Runs great, checked out thoroughly, Year 1966, A Beast!
Manufacturer Cincinnati
Model 4316
Year 1966
16' x 3/8" Mild Steel Capacity
48" Front Operated Power Back Gauge with Pushbuttons for Fine Adjustment Forward
Rapid Traverse Forward
Backward & Readout Pushbuttons for Start - Stop
Automatic Oil Lubrication
(5) Spring Counterbalances
(6) Dovetail Slots in Top of Bed
Dovetail Slot in Front of Bed
Electric Foot Pedal
20 HP Motor
Length of Knives 196"
Gap 18"
Rake Angle 21/64"
Holddowns 17 Hydraulic
Holddowns to Knife Edge 1-1/8"
Distance Under Holddowns 1"
Floor to Top of Bed 32"
S.P.M. Approx. 40
10' Squaring Arm
3 Sets of Spare Blades
TERMS:
FOB Tennessee - “AS-IS, WHERE-IS” off seller’s floor, Full Payment due prior to shipment. Price includes machine prep and loading on buyers truck. Immediate availability, subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
