The Doringer Model D350 SA is a Semi-Automatic Circular Cold Sawing Machine that delivers High Performance and is Engineered For Precision Repetitious Cutting of Solids, Large Pipe, Wide Sectionals Of Steel, Stainless Steel and Aluminum
Brand: Doringer
Model: D350 SA
Type: Cold Saw Ferrous
Blade Diameter: 14"
Motor: 3HP
Cutting Capacity:
Round Tubing: 4.75" - 0-45 Degrees
Square Tubing: 4" Straight, 3.5" - 0-45Degrees
Rectangular: 6.5" X 2.75" Straight, 4.75" X 2.5" - 0-45 Degrees
Solids: 3” - 0-45 Degrees
Motor Configuration:
110/220 Volts, 1 Phase, 60 Cycle: 1700 RPM / 54 RPM
220 or 440 Volt, 3 Phase, 60 Cycle: 850/1700 RPM / 27/54 RPM
220 or 440 Volt, 3 Phase, 60 Cycle: 1700/3400 RPM / 54/108 RPM
* All Single Phase Motors Are Dual Voltage.
* All 3 Phase Motors Are Single Voltage.
* Please Verify Your Available Voltage.
** Gear Reduction Ratio 1:31 For High Torque.
Weight and Dimensions
Machine Packed Weight: 960 LBS
Machine Unpacked Weight: 890 LBS
Machine Packed Dimensions: 76"H X 30"W X 43"L
Machine Unpacked Dimensions: 72"H X 26"W X 36"L
** Formal factory quote provided to interested buyers.

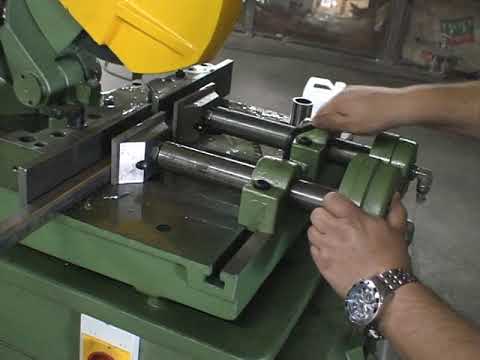

Double pneumatic vising system
Air over hydraulic power down-feed
Two-hand control
Parts counter
Two-piece hinged safety guard
Cabinet stand with doors
2-speed motor on all 3-phase machines
Overload protection switch with mushroom button for quick shutoff
High volume electric coolant pump (seal-less)
Overload protection switch for coolant pump
Large removable chip tray
7-gallon coolant reservoir
Complete set of allen wrenches & grease gun
350mm (14”) sawblade
Doringer H-32 coolant concentrate
1 year warranty
Model D350 Optional Equipment:
Graduated Length Stop 120” English/Metric infinitely adjustable in 1/32” increments.
Foot Control Unit for hands-free operation available with limit valve return or foot release return.
Infeed/Outfeed Roller Tables:
* Heavy duty with adjustable legs and recessed rollers for gang stacking and safety. Capacity as follows:
5’ with 2 supports - 1000 pounds Capacity
10’ with 2 supports - 1800 pounds Capacity
20’ with 3 supports - 2500 pounds Capacity
Model D350 SA Warranty
All products are warranted to conform to the manufacturer’s general standards of quality of materials and workmanship. Any parts not meeting with standards will be supplied at no cost to the purchases up to 12 months after delivery date and will be fitted on return of the machine to the company’s factory. Parts deemed by the manufacturer to have failed through normal wear and tear, misuse or abuse are not covered by this warranty, even if failure occurs during the 12 month warranty period. Sawblades and other perishable tooling are not covered by warranty.
TERMS:
FOB FACTORY - GARDENA, CA, Includes Manufacturer’s 1-Year Warranty, Full Payment due prior to shipment. Price includes machine prep and loading on buyers truck. Immediate availability, stock machines subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
