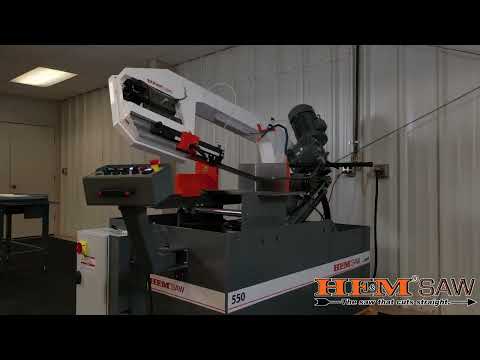

HEM 550 BSA - 11" x 20"
Have one to sell?
New
The 550 BSA is a double-mitering band saw cutting 45ᵒ in both directions, up to 60ᵒ left miter. Adjustable blade speed is set from swing-away control console and arm height is set by pressing a button on the control. An adjustable part stop is included. Patented hydraulic system for a smooth regulation of bow feed and cutting pressure.
BRAND: HE&M SAW
MODEL: 550 BSA
TYPE: Band Saw, Shop
Main Capacity: 0-19.7" W x 0-11.3" H
Blade: 12' 6" L x 1.25" H x .042"
Motor: 5.5 HP
Miter: Dual 45° Miter, One-Way 60° Miter
Square Capacity - 11.3" (Square)
Round Capacity - 13" (Diameter)
Bar-feed - N/A
Operation Type - Semi-Automatic
Power Source - 220/440/3PH
Bandsaw Blade Speed - Variable
Bundle Cut? - No
Weight - 2,500 lbs
Dual 45° Miter
One-Way 60° Miter
Swing-Away Console - Semi-Automatic Control
Patented Hydraulic System
Adjustable Feed Rate & Cutting Pressure
Vise - Hydraulic Adjustable
Variable Blade Speed
Blade Speed & Height Set from Control Panel
Miter Scale
LED Angle Readout on Console
Blade Tension Value shown on Console
Rugged 3/16" Steel Base
Part Counter on Control Panel
Heavy-Duty Sealed Pivot Bearing Point
Full Capacity Cutting Surface
Guide Arm - Manual Adjustment
Laser Light System
Hard-Stop Measuring Device
Emergency Stop
Blade Brush
Coolant System - Flood
Large Chip Container
LED Work Light
Options:
Roller Table Extension
Inbound or Outbound Roller Tables
