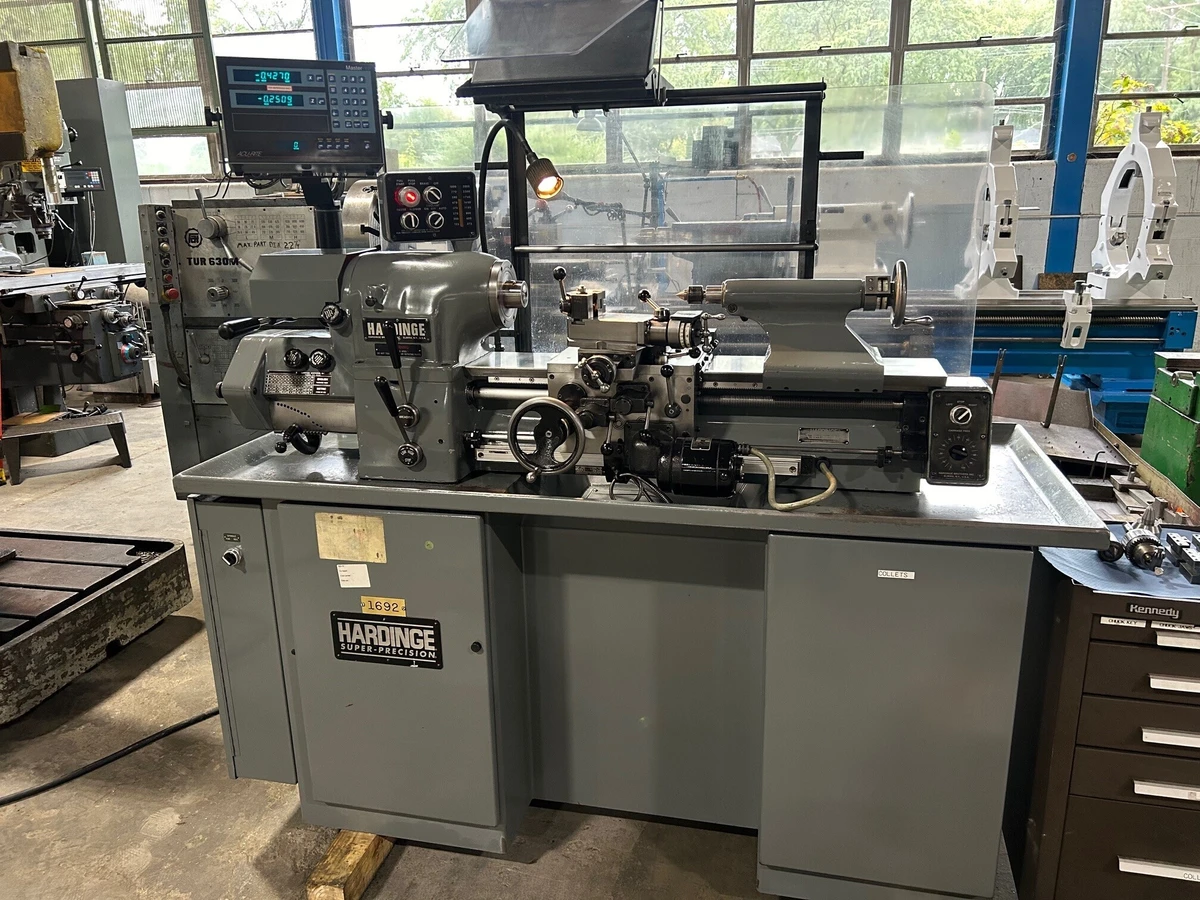

1997 HARDINGE HLV-EM | Precision Lathes
Have one to sell?
1 available
BRAND: HARDINGE SUPER-PRECISON
TYPE: TOOLROOM LATHE
MODEL: HLV-EM
YEAR: 1997
SPINDLE CONSTRUCTION ............. PRECISION PRELOADED BALL BEARING
SPINDLE NOSE ..................... HARDINGE TAPERED
INF. VARIABLE SPINDLE SPEEDS ..... 125 TO 3000 RPM
HOLE THROUGH SPINDLE ............. 1-1/4"
SPINDLE CAPACITY:
w/ROUND 5C COLLETS ........... 1-1/6
w/HEXAGON 5C COLLETS ......... 7/8"
w/SQUARE 5C COLLETS .......... 3/4"
w/STEP CHUCKS ................ 1-1/16" TO 6"
w/JAW CHUCKS ................. 5"
w/EXPANDING COLLETS .......... 3"
SWING OVER BED ................... 11"
SWING OVER CARRIAGE .............. 9"
SWING OVER CROSS SLIDE ........... 6"
DISTANCE BETWEEN CENTERS ......... 18"
COMPOUND SLIDE TRAVEL ............ 3"
CARRIAGE POWER FEED RANGE ........ 5/16" TO 7" IPM
CROSS SLIDE POWER FEED RANGE ..... 3/16" TO 4" IPM
TAILSTOCK SPINDLE DIAMETER ....... 1-3/8"
TAILSTOCK SPINDLE TRAVEL ......... 3-3/4"
TAILSTOCK SPINDLE TAPER .......... #2 MT
THREADING RANGE .................. 11" TO 108" TPI
INCH THREADING RANGE ............. 11 - 108 T.P.I.
METRIC THREADING RANGE ........... 0.275 - 2.7 MM
APPROX. DIMENSIONS ... LxWxH ..... 68" x 30" x 60"
APPROX. WEIGHT ................... 1,700 LBS.
- INCH/METRIC THREADING CAPABILITY
- ACU-RITE TWO AXIS DIGITAL READOUT
- INCH/METRIC DUAL DIALS ON TAILSTOCK & COMPOUND
- HARDINGE LEVER TYPE 5C-COLLET CLOSER
- HARDINGE 5" 3-JAW CHUCK
- HARDINGE MODEL: L19 QUICK CHANGE TOOLPOST WITH HOLDERS
- JACOBS DRILL CHUCK FOR TAILSTOCK
- ASSORTMENT OF 5C COLLETS
- COOLANT SYSTEM
- 1.5 HORSE POWER TWO SPEED MOTOR
- 230/460 VOLT OPTION
TERMS:
FOB New Jersey, USA - MDNA 30-Day Return Privilege. Full Payment due prior to shipment. Price includes machine prep and loading on buyers truck. Immediate availability, subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
