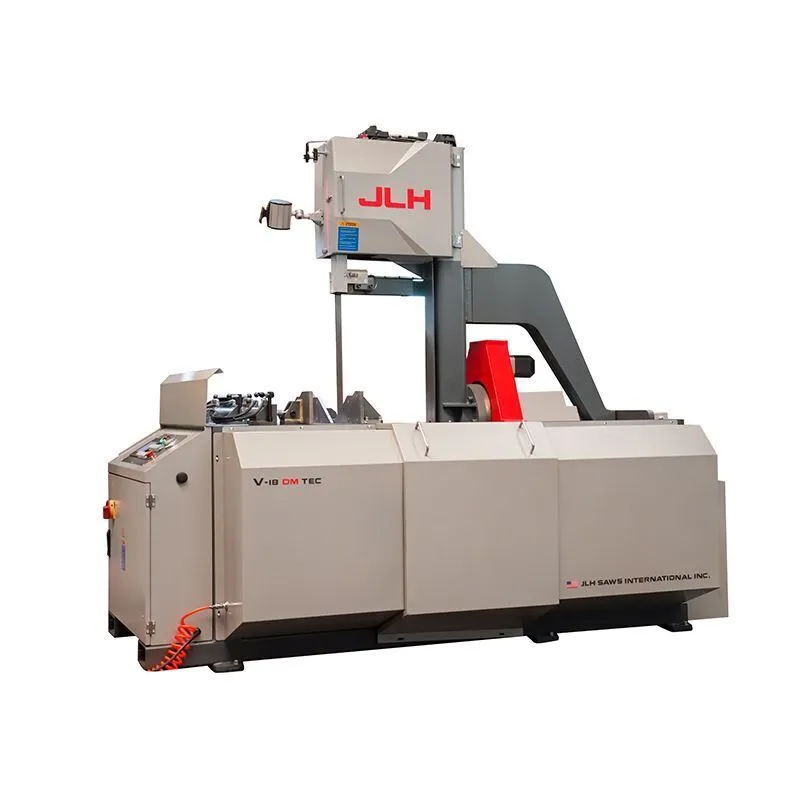

JLH V-18 Vertical Band Saw
Have one to sell?
New
JLH V-18 Vertical Band Saw is a compact & rugged technological advancement in the dual-miter class of vertical band saws. This saw come loaded with servo driven saw feed and angle tilt, dual split vises, laser aligner and advanced control as standard features.
Brand JLH
Model V-18 DM TEC
Type Vertical Tilt Frame Band Saw
Cutting Range 90° Flat (W x H) - 17.5" x 27.95"
Cutting Range 90° - Round 17.5"
Cutting Range 45° Round - 17.5"
Cutting Range 45° Flat (W x H) - 17.5*17.2"
Cutting Range 60° Round - 10.43"
Cutting Range 60° Flat (W x H) - 17.5" x 10.43"
Smallest Size To Be Cut - 0.39" x 0.39"
Clamping Range - 0.39 - 17.5”
Saw Blade - 1.25" x 196.85" x 0.043"
Cutting Speed Infinitely Variable - 65.6-262.4 ft/min
Saw Feed Speed - 0.04-11.8 In/min
Rapid Motion - 118 in/min
Motor - 4.08 HP
Hydraulic Motor - 2.04 HP
Total Connected Load 5.5KW/7.48hp
Dimensions (L x W x H) - 120.5” x 103.1” x 98.4”
Table Height - 40.15”
Total Weight - 4,840 Lbs
Automatic Angle Sawing Setting (Servo)
Split Vise Clamping
Hydraulic Movable Guide Arm
LED Working Light
Laser Line Projection
Blade Breakage Detection
Hydraulic Blade Tension
Hydraulic Blade Guide Clamping
CE Standard Safety Protection
Servo Feeding
Sawing Depth Control
HMI+ Buttons
Hydraulic Cooling Fan
CE Electrical Safety
Tool box (wire brush, levelling pads, spare paint)
Options:
UL Electrical Safety
Simple Roller Table
Auto Lubrication Device
FOB FACTORY, Houston, TX - Includes Manufacturer’s 1-Year Warranty, Full Payment due prior to shipment. Price includes machine prep and loading on buyers truck. Immediate availability, stock machines subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
