| Tonnage | 160 T | 145.15 t |
| Type | HYD | HYD |
| Overall Length | 10.17' | 3,100 mm |
| Between Housings | 8.04' | 2,450 mm |
| Stroke | 7.874" | 200 mm |

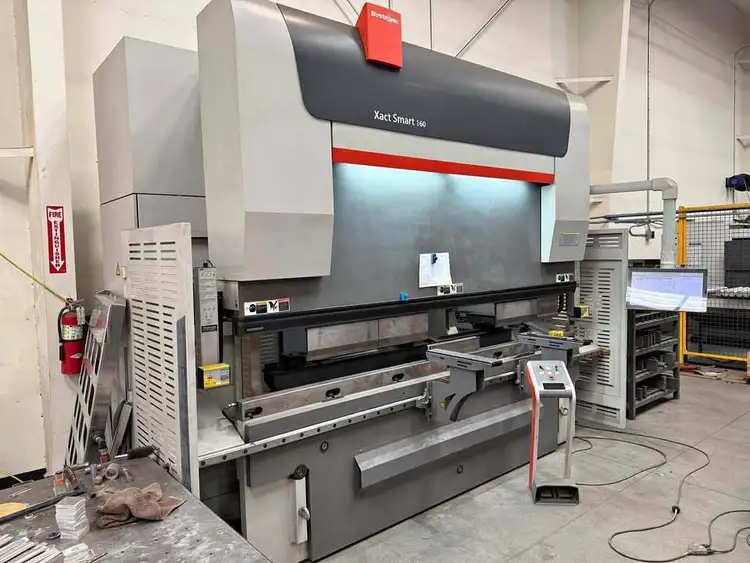

Brand: Bystronic
Model: Xact Smart 160
Type: CNC Press Brake
Year: 2021
Manufacturer's Catalog Specs:
Capacity: 10 ft x 160 ton
Overall Length of Bed - 10'
Distance Between Housings - 96"
Stroke - 10"
Throat Depth - 15.75"
Open Height - 18.89"
Table Width - 2.36"
Max Back Gauge Range X 31.5"
X Axis Travel - 23.62"
X Axis Speed - 16 IPS
X Axis Accuracy - 0,05mm
R Axis Travel - 5.91" IPS
R Axis Speed6mm/s
Z axis Travel - 72.05"
Z Axis Speed - 16mm/s
Max Y Axis Traverse - 5.51" IPS
Max Y Axis Working Speed - 0.39 IPS
Hydraulic clamping upper and lower die
CNC backgauges
CAD import
TERMS:
Location Southern California - “AS-IS, WHERE-IS” off seller’s floor, Full Payment due prior to shipment. Seller will prep for shipment, buyer pays for removal. Immediate availability, subject to prior sale. Under power and available for in-person inspection. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
This equipment has been sold. Similar equipment available now is shown below.
