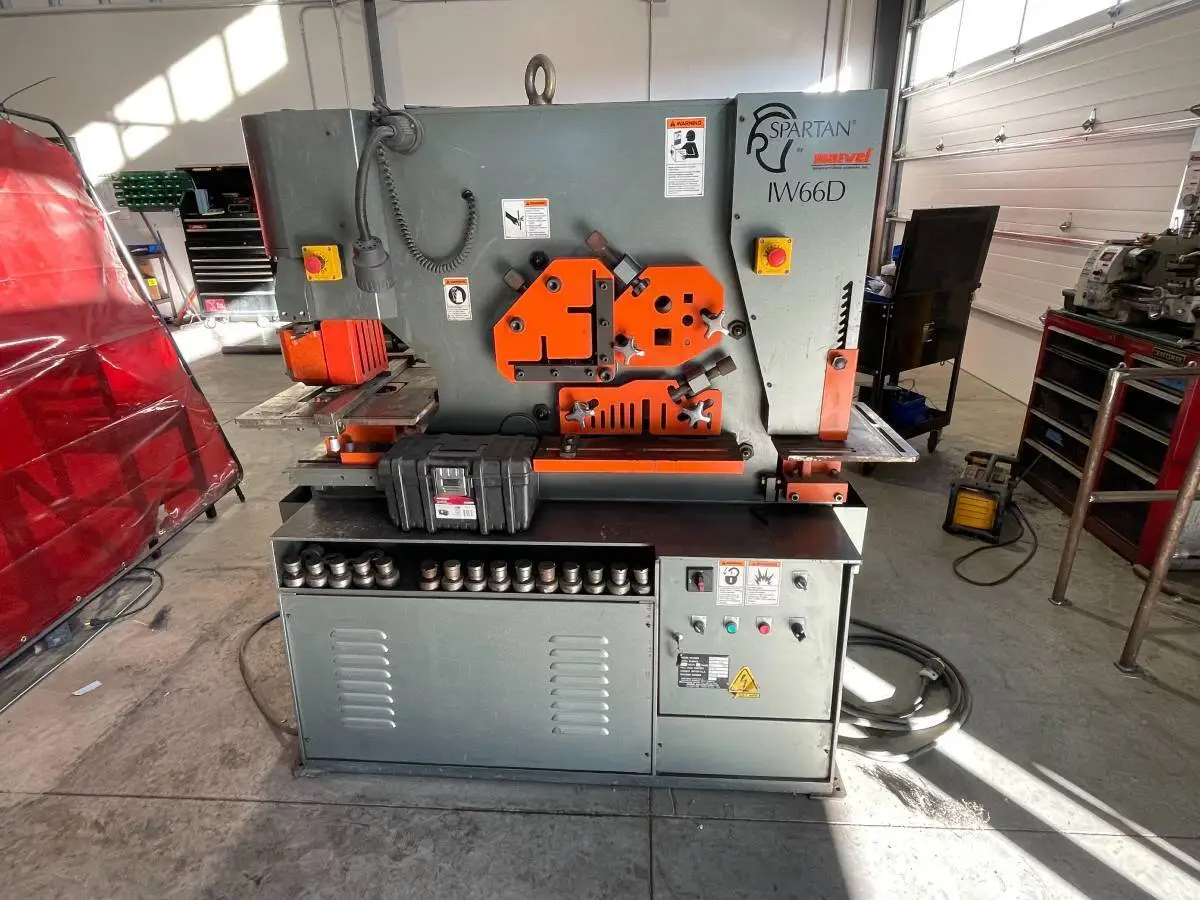

Spartan IW66D Ironworker

Brand: MARVEL SPARTAN
Model: IW66D
Type: UNIVERSAL HYDRAULIC IRONWORKER
Year: 5-31-04

Catalog Specifications:

DUAL HYDRAULIC CYLINDERS
PUNCHING CAPACITY:
Nominal Tonnage 66
Punch Diameter x Plate thickness 1-1/16" x 3/4"
with Special Tooling 6" in 1/8" material
Depth of Throat 12"
Strokes/min (0.60 in) 30
Stroke Depth adjustable. Adjustable Back Stop
Two Piece Gauging Table.
FLAT BAR SHEARING CAPACITY: Length of Blade 14⅛"
Flat Bar Shear 14" in 9/16", or 12" in 3/4"
Angle Flange Trim 4"
ANGLE SHEARING:
90° 5" x 5" x 1/2"
45° 2½" x 2½" x 5/162"
ROUND and SQUARE BAR SHEAR:
Round thru 1½"
Squares thru 1½" x 1½"
Channels and H-Beams 5"
RECTANGLE NOTCHING 2" x 3½" x 3/8"
90 degree Notcher 3½" x 3½" x 3/8"
Pipe Notcher 1½" – 40
V-Notcher, Capacity Only 5¾" x 5¾" in 5/16"
Squaring Guides
MOTOR DRIVE: Wired 440 volts, 3-phase
To Hydraulic Pump 7½ hp. 22/0440 volts
CONTROLS: Wired Low Voltage
Two Full Controls Foot Pedals. Start/Stop Buttons
EQUIPPED WITH:
3’ Back Gauge with Electronic Stop for Angle and Rod Shearing.
1-Magnetic Base Work Light.
COMPLETE FACTORY SAFETY GUARDS

Dimensions 68" L x 31" W x 67" Ht.
Approximate Weight 3,969 lbs.

From Seller:
We are selling a Spartan IW66D Ironworker. We purchased this approx 10 years ago new and has been hardly used. Comes with many dies as well as an auto feed stop.

TERMS:

FOB Redmond, WA - “AS-IS, WHERE-IS” off seller’s floor, Full Payment due prior to shipment. Price includes machine prep and loading on buyers truck. Immediate availability, subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
