| Sheet-W | 60" | 1,524 mm |
| Sheet-L | 120" | 3,048 mm |
| Wattage | 4000 w | 4,000 W |
| X | 122.28" | 3,105.9 mm |
| Y | 62.28" | 1,581.9 mm |
| Z | 3.937" | 100 mm |

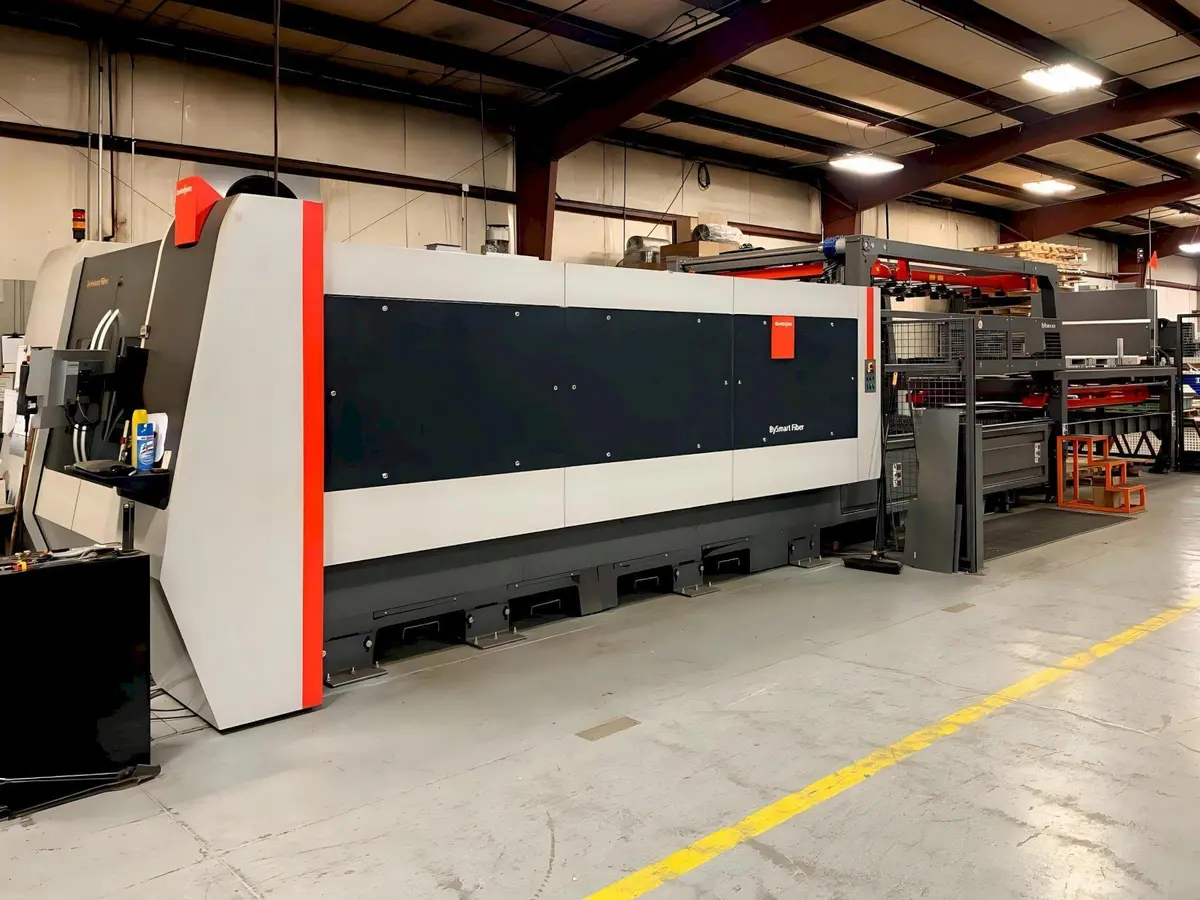

Brand: BYSTRONIC
Model: BySmart Fiber 3015
Type: Laser Cutters
Year: 2017
Highlights:
Excellent Condition - Serviced by OEM since installed.
Control: Bystronic ByVision CNC
Manual Control Unit: Yes
Laser Wavelength: Fiber
Power: 4,000 Watts (4kw)
Range of Adjustment: 400 W - 4,000 W
Nominal Sheet Size: 120” × 60”
Cutting Area (X): 122.28”
Cutting Area (Y): 62.28”
Cutting Area (Z): 3.937”
Max. Pos. Speed Parallel Axis X/Y: 3,937 IPM
Max. Sim. Positioning Speed: 5,511 IPM
Edge Detection Accuracy: (±) 0.019”
Max. Workpiece Weight: 2,425 Lbs.
Max. Weight (Both Shuttle Tables): 4,078 Lbs.
Table Changeover Time: 27 Sec.
Machine Weight (Machine Only): 26,014 Lbs.
Bystronic ByVision CNC
Touchscreen CNC Control
Bystronic Fiber 4000 Power Source
5' X 10' Dual Pallet Shuttle Table
High-Speed Cutting
Chiller Unit
Dust Collection Unit
ByTrans 3015 Load/Unload Automation
TERMS:
Location Midwest USA - “AS-IS, WHERE-IS” off seller’s floor, Full Payment due prior to shipment. Seller will prep for shipment, buyer pays for removal. Immediate availability, subject to prior sale. Under power and available for in-person inspection. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
