Mycenter-HX300iG/400 Horizontal Machining Center
Have one to sell?
1 available

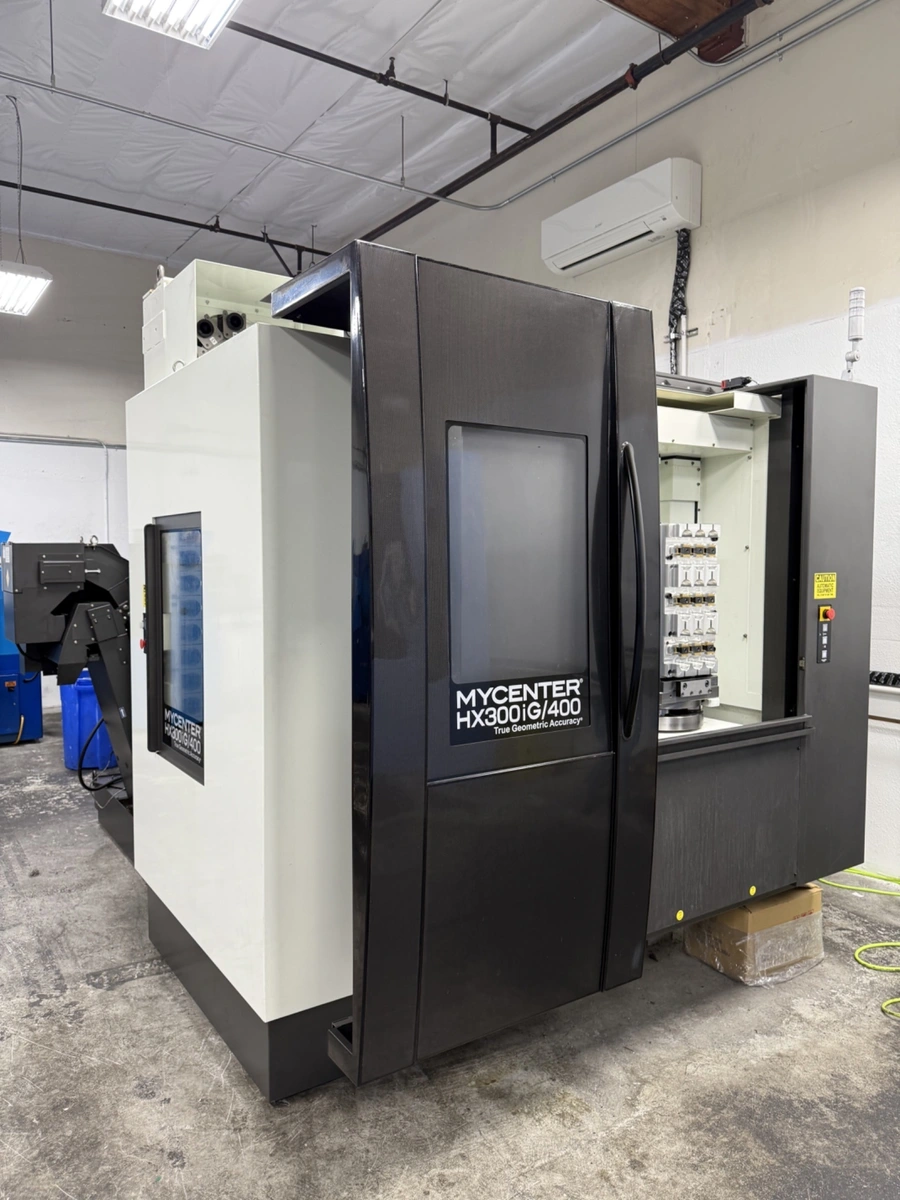

2023 KITAMURA Mycenter HX300iG/400 CNC Horizontal Machining Center, 15,000 RPM spindle, 2 pallet machine (400mm). Arumatik-Mi CNC control, thru spindle coolant, 50-station ATC, Hakusan chip conveyor, ONLY 300 HOURS.
Brand: Kitamura
Model: Mycenter HX300iG/400
Type: Horizontal Machining Center
Year: 2023
Table Size: 12” x 12” (305 x 305mm)
Travel (X, Y, Z): 18.1” x 20.1” x 22.0” (460 x 510 x 560mm)
Spindle Taper: NST No. 40
Spindle Speed: 40~15,000rpm **20,000, 30,000 Option
Tool Storage Capacity: 50 Pcs.- Field Expandable Option to 100/150/200 Tools
Tool Change Time
(T-T/C-C):
1.3 Sec. /2.5 Sec.
Rapid Feed (X,Y,Z)
Rapid Feed (B) 2,362ipm (60m/min)
54,000deg./min. (150rpm)
Power Requirement: 45KVA
*** ONLY 300 HOURS ***
(Catalog Specs)
• Drastically reduces set-up times for highly complex parts requiring multiple operations
• Amazingly small footprint saves on valuable floor space
• Positioning Accuracy: ±0.000039”/Full Stroke, Repeatability: ±0.00002”
• Ultra high speed rapid feed rates of 2,362ipm
• High Speed 4th axis rotary table, Integral Motor Driven 54,000deg/min (150rpm) rapids
• 2-Station APC is automation ready and field expandable up to 8 pallets for unmanned operation potential
• High power, high-speed processing Arumatik-Mi CNC with 67 million pulse encoder technology
• Powerful 15,000rpm, 30HP, dual contact spindle
• Ballscrew Cooling and Linear Scale Feedback in all axes
• Ability to add 400mm tables in the field as an option
TERMS:
Location Oakland, CA - “AS-IS, WHERE-IS” off seller’s floor, Full Payment due prior to shipment. Buyer pays for removal. Immediate availability, subject to prior sale. Under power and available for in-person inspection. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
