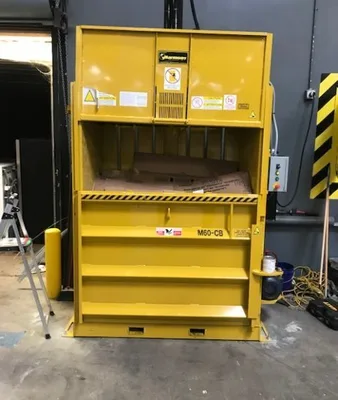

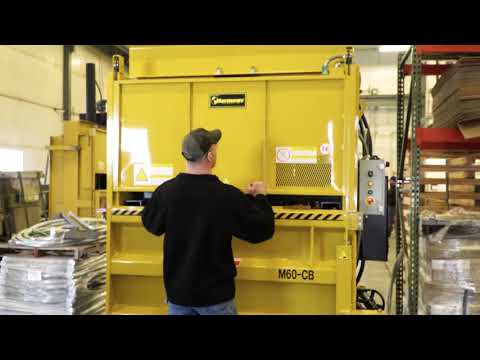

Harmony M60CB Vertical Baler
Have one to sell?
New
Increase your recycling efficiency & boost your bottom line with the M60CB Vertical Cardboard Baler! Ideal For: Retail chains, hotels, department stores, manufacturing facilities, universities, medical facilities, & any industrial or commercial application recycling cardboard!
Brand: Harmony
Model: M60CB
Type: Vertical Baler
Mill Size Bale Dimensions: 30”x 60”x 51”
Bale Weight (OCC): ≤ 1,000 lbs.
Feed Opening: 24” x 60”
Ram Force: 50,900 lbs.
Volume: Large
Cycle Time: 45 seconds
Cylinder: 6” bore (152 mm), 3.5” rod (89 mm), 42” stroke (1,219 mm)
Motor: 5 horsepower
Pump: 12 gallons per minute
Electrical Power: 208/230/460 volt, 3 phase, 60 Hz
Bale Eject: Hydraulic
Bale Tying: Wire or banding
Loading Door Opening: 24” x 60” (610 mm x 1,524 mm)
Unloading Door Height: 56” (1,422 mm)
Overall Height: 147” (3,734 mm)
Overall Depth: 37” (940 mm)
Overall Width: 83” (2,108 mm)
Depth with Door Open: 97” (2,464 mm)
Width with Door Open: 89” (2,261 mm)
Shipping Height (on side with cylinder extended): 83” (2,108 mm)
Installation and Operating Area: 62.5 square feet (5.8 square meters)
Shipping Height: 74″ on side with cylinder extended (1,880 mm)
Shipping Weight: 3200 lbs. (1452 kg)
Installation and Operating Area: 42 sq. ft. (3.9 sq. meters)
Fast 45 second cycle time for a mill-sized cardboard baler!
Wide 60” x 24” feed opening
Hydraulic strap eject to front side of baler
Flexible coupling between pump & motor
Full hinge construction on lower door
Solid sheet construction on upper door
5 HP motor
Allen Bradley PLC
Parker hydraulic valves
Powerful 6" Rosenboom hydraulic cylinders
Low noise level operation
Optional bale full light, opposite hinge door, wire guides
Meets or exceeds OSHA or ANSI Z245.5 safety standards
Made In The U.S.A.
FOB Factory Harmony, MN - Includes Manufacturer’s Warranty, Full Payment due prior to shipment. Price includes machine prep and loading on buyers truck. Immediate availability, stock machines subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
