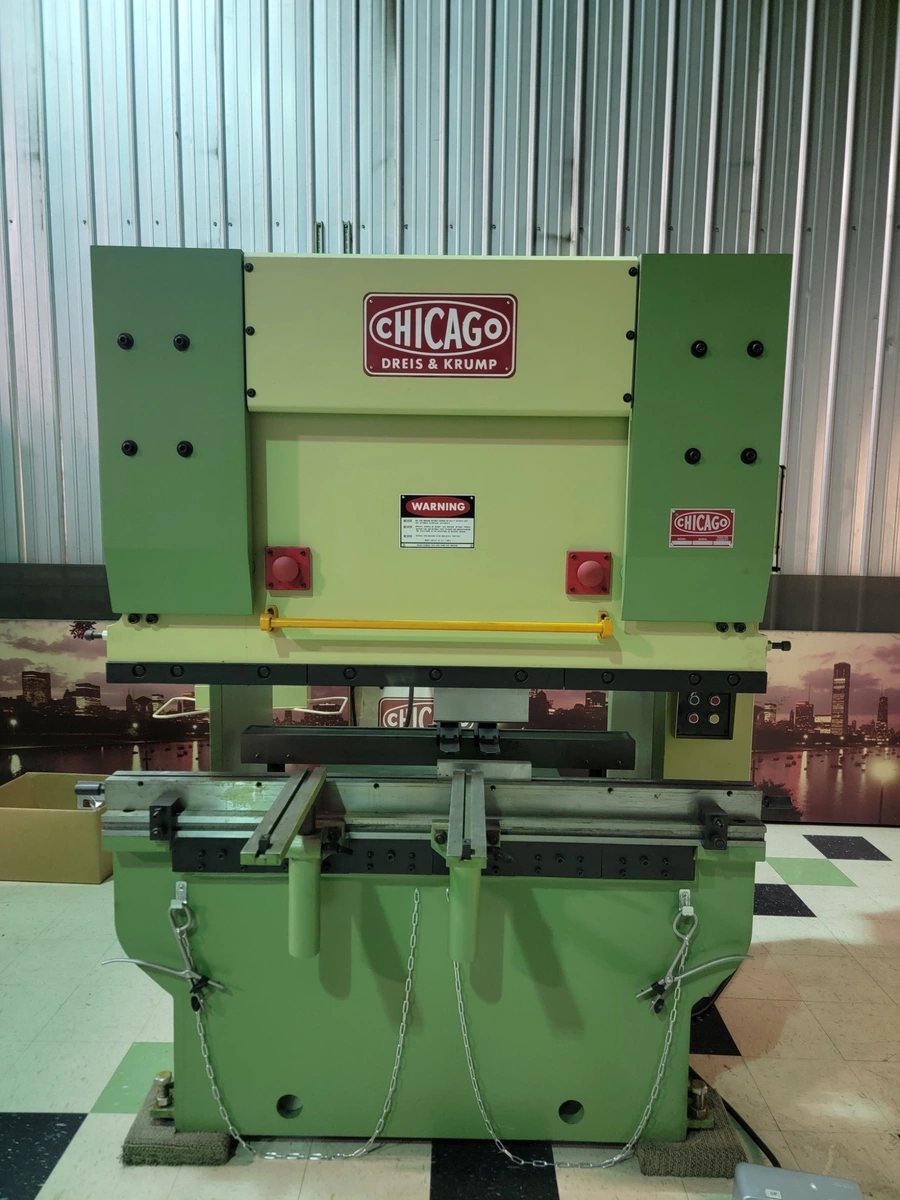

2025 CHICAGO DREIS & KRUMP HPB 4015 | Press Brakes

All steel welded construction – deep section bed and ram are made of solid one piece rolled steel plate sized for lateral rigidity and minimum deflection under full load.
Self contained hydraulic unit mounted overhead and between side housings, including pump and unitized hydraulic manifold.
Suction line oil filtering system.
Tonnage indicator with adjustable load control.
Die holder.
Alloy steel hardened and ground piston rods to reduce packing wear.
Mechanical leveling – Torsion bar keeps bed and ram parallel at any point in the stroke.
Sectional ram clamping bars.
Operator hand rail.
Adjustable deflection compensator built into bed top.
Full length dove tail slot in bed top (front & rear).
Adjustable - slow down switch/top of stroke switch.
Bottom of stroke dwell (adjustable).
Electronic stroke counter.
Dual axis numeric controls.
NC back gauge, ball screw driven with vertical height adjustment and adjustable finger extensions.
Depth control adjustment nut in each cylinder, independent operation to insure accurate air forming.

NUMERIC CONTROL 320TS Touch Screen
Program: Ram depth, back gauge crossbar position, back gauge retract, retract delay, parts counter.
Quick set-up for single form jobs.
Programmable operation for multi-angle/variable flange sequence forming jobs.
10-Inch Touch Screen Control with Inch/Millimeter readout.
99 Programmable jobs.

ELECTRICAL EQUIPMENT
3 H.P. general purpose, open type ball bearing motor for operation on 220/440 volts (please specify), 3 phase, 60 HZ. Magnetic, non-reversing, across the line starter with overload protection. Low voltage operating controls.

TERMS:
F.O.B. Factory, Peotone, Illinois - Includes Manufacturer’s 1-Year Warranty, Full Payment due prior to shipment. Price includes machine prep and loading on buyers truck. Immediate availability, stock machines subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
