2025 CHICAGO DREIS & KRUMP HBP-10250-6 | Brakes, Box & Pan Powered
Have one to sell?
1 available
New

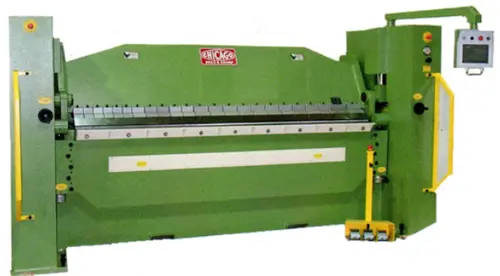

In-Stock! Chicago Dreis & Krump heavy-duty hydraulic box & pan brake with 120" x 1/4" capacity.
Bending length: 120”
Capacity (mild steel): 1/4” **
Capacity (stainless steel): 3/16” **
Minimum reverse bend: 1-3/8”
Finger extension depth: 6”
Number and width of fingers With nose bar:
6 – 3”
3 – 4”
10 – 5”
7 – 6”
Motor: 10HP
220 volts, 3 PH, 60HZ
Shipping weight: 15,600 lbs.
** The bending capacity of the brake is achieved when using the angle bar and forming a 2-1/2” minimum flange on capacity material.
Removable Nose Bars Angle Bar
Bolted Bottom Bar 1-3/8” Insert Bar
Compact Hydraulic Power Unit Oil Level Sight Gauge
Schneider Control Panel Features:
On/Off Selector Switch Motor Start Pushbutton
Bending Leaf Up/Down Pushbuttons Emergency Stop P/B
Clamp/Unclamp Pushbuttons Automatic Cycle
ELECTRIC FOOT SWITCH – Clamps & Unclamps Top Leaf. Allows operator mobility when loading and unloading material. Bend leaf UP switch.
BEND ANGLE NC ADJUSTMENT – Program bend angle or read bend angle when bending leaf is in motion.
MATERIAL THICKNESS DIAL ADJUSTMENT – Reference scale for speedier set up when adjusting clamping pressure.
ADJUSTABLE CLAMP PRESSURE - Reduces marking on material.
BACK GAUGE – 24” travel, rack & pinion type gauge with hand wheel adjustment on right side of machine. Inch/Cm. Scale.
MANUAL CONTROL – Bending leaf up/down pushbuttons allow operator control of the bending leaf motion.
AUTO CYCLE – Actuate the “Auto Pushbutton” clamp the top leaf, Angle Start raises the bending leaf to the preset bend angle setting, lowers the bending leaf, unclamp the top leaf.
OPTIONAL EQUIPMENT
NC powered back gauge, 31” travel, ball screw driven, spring loaded contact fingers, ball supports, control material flange length with programmable NC controller. . . . . . . . . . . . . . . . . . . $ 21,815.00
TERMS:
FOB FACTORY, Chicago, IL, Includes Manufacturer’s 1-Year Warranty, Full Payment due prior to shipment. Price includes machine prep and loading on buyers truck. Immediate availability, stock machines subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
