| X | 28.7" | 728.98 mm |
| Y | 25.6" | 650.24 mm |
| Z | 31.5" | 800.1 mm |
| RPM | 14,000 RPM | 14,000 RPM |
| # ATC | 218 | 218 |
| Taper | CAT40 | CAT40 |
| Pallet-W | 19.7" | 500.38 mm |
| Pallet-L | 19.7" | 500.38 mm |
| # Axis | 4 | 4 |

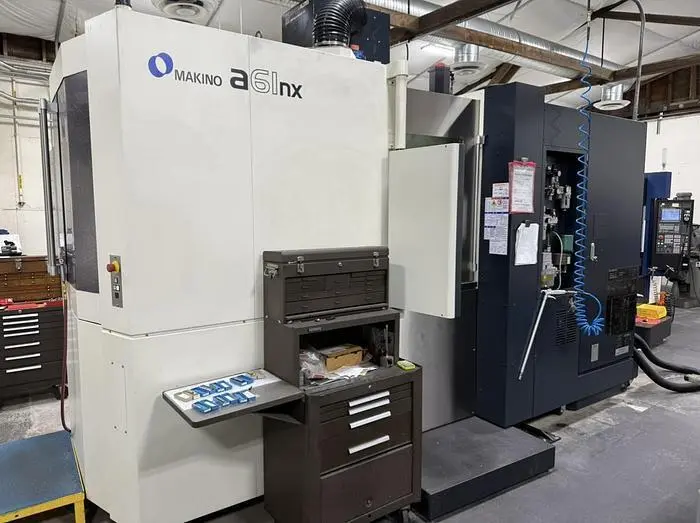

Manufacturer: Makino
Model: A61NX
Types: Horizontal Machining Center
Year: 2020
Condition: Used
PALLET WIDTH 19.7"
PALLET LENGTH 19.7"
PALLET INDEXING FULL 4TH
NUMBER OF PALLETS 2
MAX WORKPIECE WEIGHT 1,210 lb
X-AXIS TRAVEL 28.7"
Y-AXIS TRAVEL 25.5"
Z-AXIS TRAVEL 31.5"
SPINDLE SPEED 14,000 RPM
SPINDLE MOTOR 50 hp
SPINDLE TAPER CAT 40
TOOL POSITIONS (ATC) 218
RAPID TRAVERSE RATE 1,968 in/min.
CUTTING FEEDRATE 1,968 in/min.
Weight 20,900
HOURS:
Operation Time: 1,786 Hours
Spindle Spin: 1,739 Hours
Cutting Hours: 1,451 Hours
Price as equipped new: over $600,000
218 TOOL ATC
CAT 40 TAPER SPINDLE
1451 CUTTING HOURS
GLASS SCALES
LOADED WITH OPTIONS
TERMS:
Location Stockton, CA - “AS-IS, WHERE-IS” off seller’s floor, Full Payment due prior to shipment. Seller will prep for shipment, buyer pays for removal. Immediate availability, subject to prior sale. Under power and available for in-person inspection. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
