AMADA ASTRO FBD-1253MH with Robot
Have one to sell?
1 available

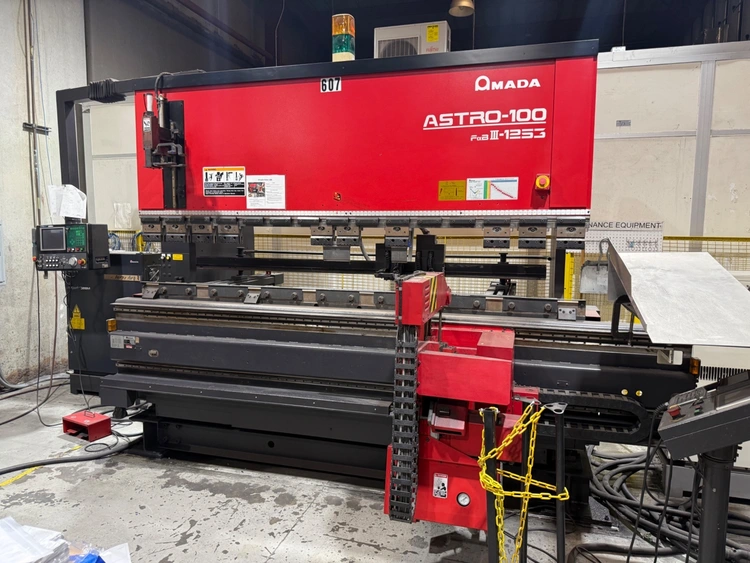

The Amada Astro-100 FBD-1253MH is a 125-ton hydraulic press brake with a 122-inch bed length. It has a 5.9-inch stroke length, a 16.5-inch open height, and a 106-inch distance between housings. The machine is equipped with an Astro-100 robotic bending system.
Brand: Amada
Model: Astro-100 FBD-1253MH
Type: CNC Press Brake
Year: 2000
Capacity: 125 tons
Bed Length: 122 inches
Ram Repeatability: +/- 0.0004 inches
Bending Speed: 2.4-18 inches per minute (programmable)
Return Speed: 212 inches per minute
Hydraulic Oil Capacity: 22 gallons
Drive Motors: AC Servos (5 motors)
Maximum Part Size: 31.5 x 39.5 inches
Maximum Material Weight: 33 lbs
Flange Length Repeatability: 0.004 inches
Grip Options: 2 standard
Power Requirements: 220v / 3PH
Air Requirements: 30 FT./MIN @ 71 PSI, DIA. LINE
Machine Weight: 27,496 lbs / 1,367 lbs
Robot Axes: 5-axis bending robot
TERMS:
Located Hayward, CA - “AS-IS, WHERE-IS” with all faults off seller’s floor, Full Payment due prior to shipment. Buyer pays for removal. Immediate availability, subject to prior sale. Under power and available for in-person inspection. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
