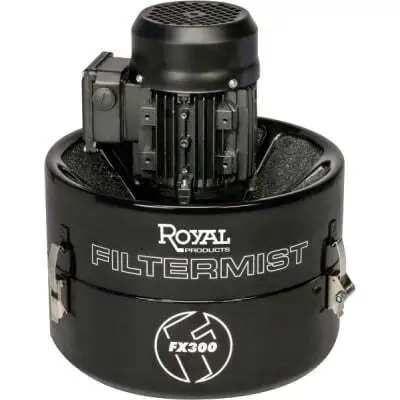

ROYAL PRODUCTS FILTERMIST FX-300 | Tooling & Accessories (Other)

Airflow (cfm) 295
Fits machines with enclosure volume of Up to 80 cubic feet
Motor
3/4 HP (0.55 kW), 3-Phase, 50/60 Hz.
Voltage & Current @ 60Hz: 208V (2.6A), 230V (2.6A), 460V (1.4A)
Weight (lbs) 31
Noise Level (dBA) 65

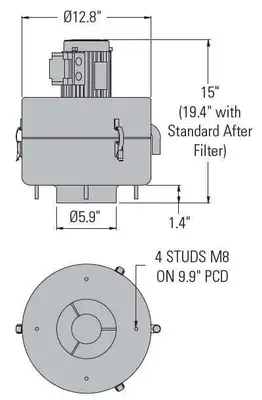

Inlet Diameter 6″
Hardware for direct mounting and 5ft. of coolant return hose.

Advantages:

Used primarily on small, enclosed CNC machines with an internal volume of up to 80 cu. ft.
Large 6" dia. intake results in a very low intake velocity, reducing the likelihood that chips and large droplets will be drawn into the unit.

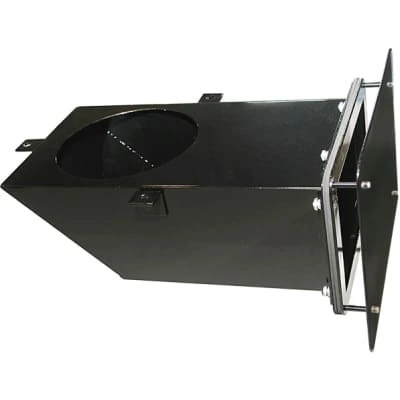

Designed primarily for direct-mounting to the top of a machine, but stands and brackets are also available for applications where direct-mounting is not possible.
Stainless steel model (type 304) available for special applications such as food processing and aqueous parts washers.
A great option for Swiss machines when used in conjunction with our high-performance after filter.

Located in San Carlos, CA - Can Ship to your location for additional cost.
