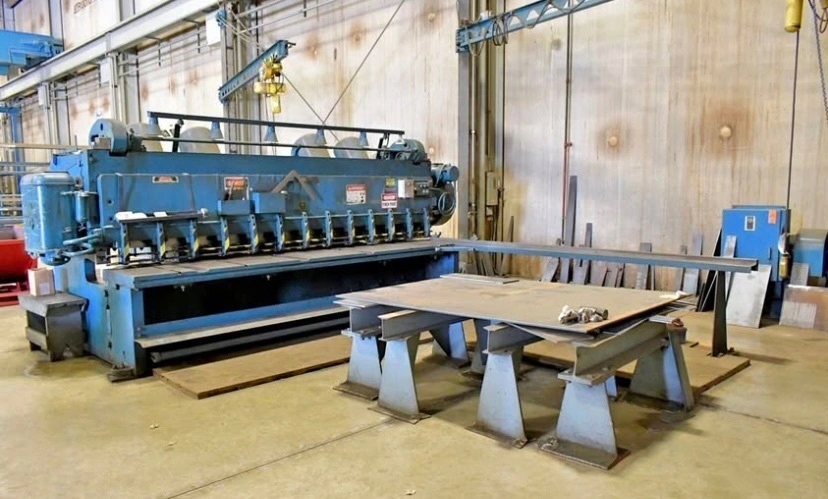

Cincinnati Model 4314 Shear, 12' x 1/2" capacity mechanical shear
Brand - Cincinnati
Model - 4312
Type - Mechanical Shear
Year - Approximately 1955
Capacity: 1/2 inch mild steel
Cutting Length: 12 feet (or 144 inches)
Throat Depth: 18 inches
Distance Top of Table to Floor: 32”
Motor: 20 HP, 220/440 Volt, 3-Phase
Back Gauge: 38" Motorized in and out (no read-out)
Weight: Approx. 41,000 lbs
Approximate Overall Dimensions: 16’-8” Long X 7’-3” Wide X 6’-11” High
Frame: Heavy-duty, cast frame
Included Components: Full length foot treadle, Squaring arm
TERMS:
FOB Chicago, IL - “AS-IS, WHERE-IS” off seller’s floor, Full Payment due prior to shipment. Price includes machine prep and loading on buyers truck. Immediate availability, subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
