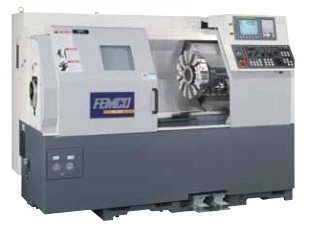

FEMCO HL-25 CNC TURNING CENTER
Have one to sell?
New
The HL-25 is a powerful, large capacity lathe that can profitably produce small to large lot parts. The huge turret casting, incorporating an oversized Curvic Coupling, can cut from 1/16” to 10.6” diameter and up to 22.8” lengths in a wide variety of materials. Featuring Fanuc high speed controls and drives, the superior cutting, accuracies, and finishes are maintained for years with little or no service.
Brand: FEMCO
Model: Hl-25
Type: CNC TURNING CENTER
CAPACITY:
Max. Turning Diameter - 10.6”
Max. Turning Length - 22.8”
Max. Swing Over Bed - 17.7”
Distance between Centers - 25.5”
SPINDLE:
Spindle Speed - 40-4800 RPM
Spindle Nose - A2-6
Hole Through Spindlev2.4”
Bar Capacity v2.02”
Chuck Diameter Standard - 8.0”
Spindle Power - 20/15 hp
SERVO TURRET:
Number of Stations - 12
Turning Tool O.D./I.D. - 0.75”/1.25”
Turret Clamping Force - 5,512 lbs.
Indexing Time (one tool) - under .9 second
Indexing Time (furthest tool) - 1.2 seconds
X-AXIS:
Travel - 6.96”
Rapid Traverse X Axis - 787 IPM
AC Servo Motor - 2.14 hp
Z-AXIS:
Z Axis Travel - 22.8”
Rapid Traverse Z Axis - 944 IPM
AC Servo Motor - 2.14 hp
TAILSTOCK:
Quill Diameter - 2.75”
Quill Travel (Hydraulic) - 3.9”
Spindle Taper - MT #4
DIMENSIONS:
Floor Space (L x W x H) - 122.5” x 60” x 69”
Weight - 7,700 lbs
Power Required: 220 volts / 3 phase 60 Hz, 60 full load amps, 80 amp wall breaker
Fanuc Oi-TF Controller
8” 3 Jaw Hydraulic Chuck
Soft & Hard Jaws
Hydraulic Actuator
Hydraulic System
Hydraulic Tailstock with Programmable Quill
Live Center
Work Light
Automatic Lubrication System
Coolant System (42 gallon capacity)
Full Chip and Coolant Enclosures
Toolbox with necessary Operating Tools
Leveling Bolts and Plates
Operation and Maintenance Manuals
Parts List and Electronic Drawings
One Year Machine Warranty
Two Year Control Warranty
+ More, See formal quote.
FOB FACTORY, Garden Grove, CA, Includes Manufacturer’s 1-Year Warranty, Full Payment due prior to shipment. Price includes machine prep and loading on buyers truck + Factory Set-Up and training.. Immediate availability, stock machines subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
