MEECO HD000 Straightening Machine
Have one to sell?
New

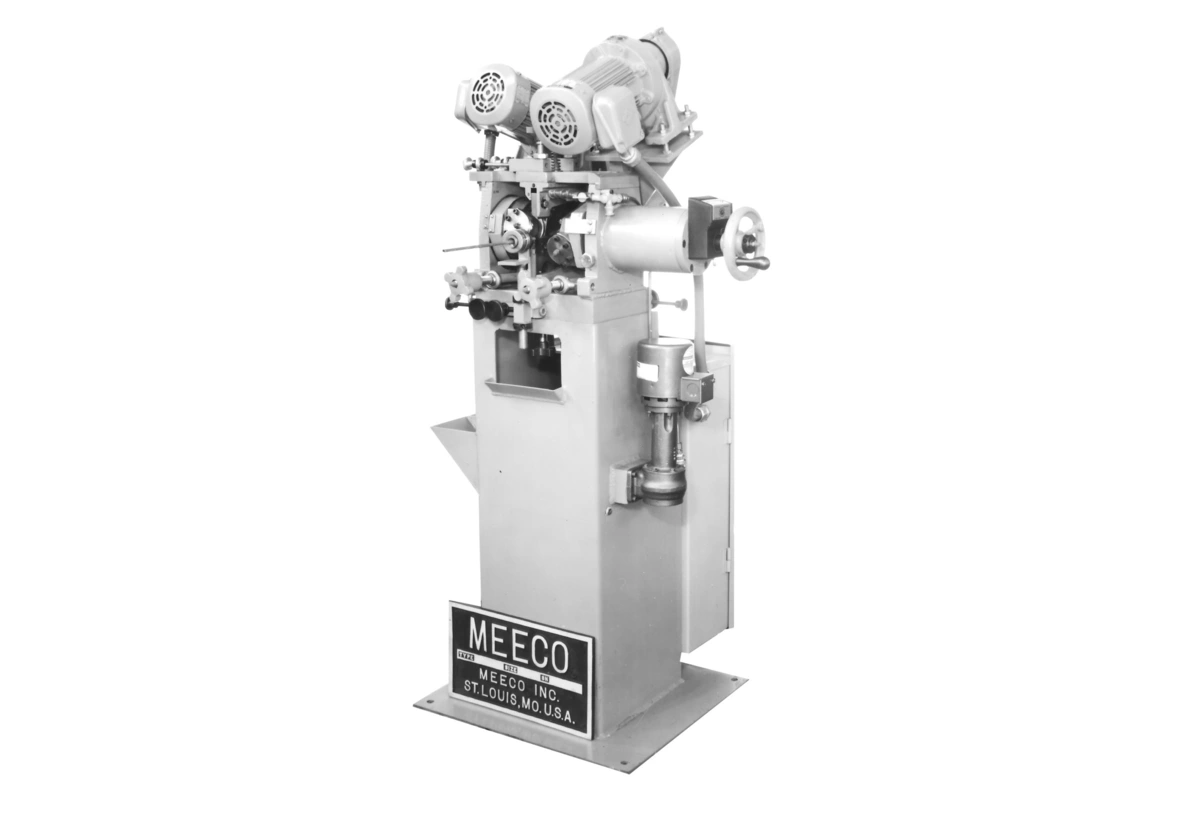

MEECO® HD000 2R2M Straightening, Sizing, and Polishing machine.
Brand - MEECO
Model - HD000
Type - Straightener
Capacity - 1/6" - 1/4"
Motors - 3/4 HP
Gear Ratio - Variable speed (20-80 fpm)
One heavy duty HD000 MEECO® two roll, two motor continuous automatic rotary straightening, sizing and polishing machine for the size range of 1/16" to 1/4" actual OD in mild materials, 1/16 - 3/16 with heat treat. Machine to have all steel welded base containing a divided coolant reservoir with flow filter baffle. Mounted on this base is the steel roll housing. Both roll carriers are mounted in cylindrical guide ways, and the straight roll is mounted on a cylindrical ram crosshead. Pressure is applied by means of a pressure screw.
Motors drive the rolls by means of an endless timing belt. The rolls are of D2 tool steel heat treated to 58 - 60 RC and ground and mounted on alloy shafts in Timken equipped yokes. Roll drives by means of hardened driving pin. The guide holders are vertically adjusted with threaded swivel pad screws. Guide holder side adjusting screws are completely enclosed with shields and fitted with grease lubrication. Guides (quoted elsewhere) are required for straightening
(2) 3/4 HP Motors
(1) Ruthann Gusher Coolant Pump
Mechanical DRO
Suggested Option:
Spare set of rolls and yokes - +6,650
MEECO Factory Set up and Training Available
**** Formal Factory Quote will be provided for all potential buyers.
TERMS:
FOB FACTORY, St. Louis, MO - Includes Manufacturer’s 1-Year Warranty, Full Payment due prior to shipment. Price includes machine prep and loading on buyers truck. Approx 6 month lead time as of 9-25-25, stock machines subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
