ATOM Flashcut Flex 1515 B/2 | Die Cutting Presses
Have one to sell?
1 available

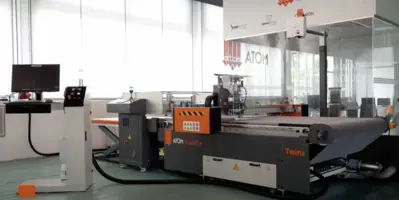

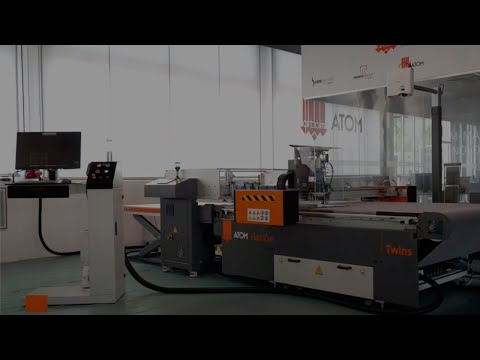

Used The ATOM Flashcut Flex 1515 B/2 is a conveyorized, dieless Ultrasonic digital knife cutting system designed for continuous, non-stop cutting of flexible and semi-rigid materials like textiles, leather, foam, and rubber.
Brand - ATOM
Model - Flashcut Flex 1515 B/2
Year - 2021
S/N - 10182599
Cutting Area (mm) - 1550 x 1550mm
Collecting Area (mm) - 1550 x 1550mm
20mm high standard head
Flashcut “B”: Cutting surface tables with movable mat.

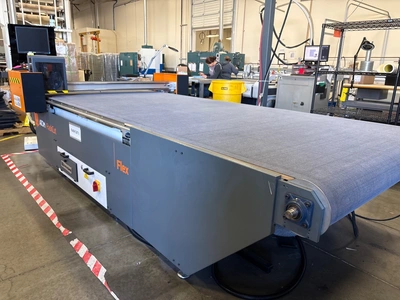

Conveyorized table for cutting rolls.
Electrical, 220V 3-phase, 60 amp circuit
Air requirements, 135 psi/9bars with dryer on the line (Very Important) 16CMF
PURCHASED OPTIONS:
Projection 1515
Upgrade to 1” cutting daylight
Blade Lubrication
1EA. Adjustable .64 mm Pnue Chuck
1EA. Fixed Knife Chuck
1EA. Fixed knife holder
Standard Punch Holder for feed through
Punch holder with ejector pin
Approx Dimensions: 165" x 118" x 119" (4200x3000x3024)
Approx Weight: (3,351 Lbs (1520 kg)
TERMS:
Location Livermore, CA - “AS-IS, WHERE-IS” off seller’s floor, Full Payment due prior to shipment. Buyer pays for removal. Immediate availability, subject to prior sale. Under power and available for in-person inspection. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
