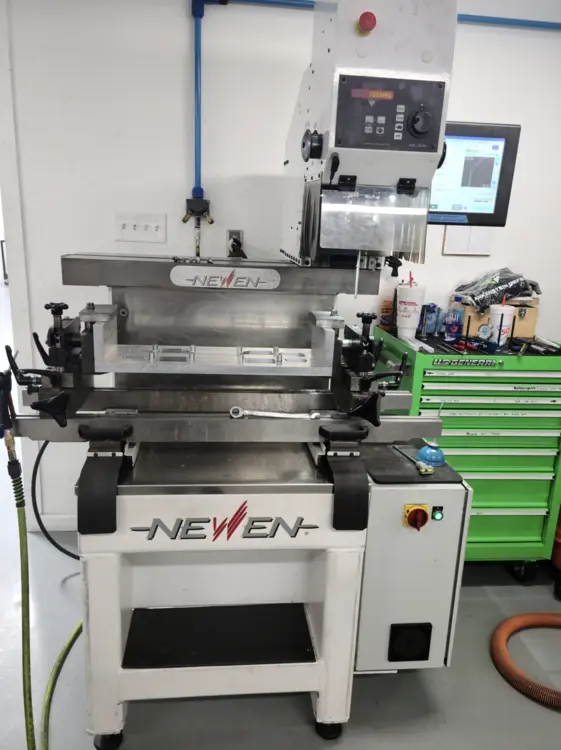

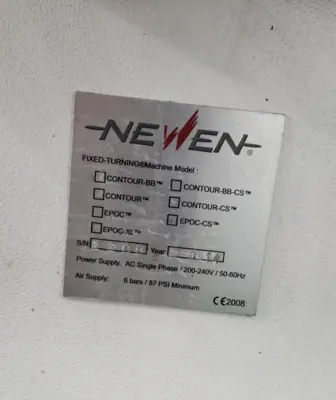

NEWEN® CONTOUR-BB™ : 2-Axis Single Point CNC Valve Seat & Guide Machine.
NEWEN FIXED-TURNING® MACHINING PROCESS (PATENTED)
Brand - NEWEN®
Model - CONTOUR-BB™
Type - 2-Axis Single Point CNC Valve Seat & Guide Machine
Year - 2014
X-Axis, machine head travel - 760mm (29.92”)
Y-Axis, machine head travel - 60mm (2.36”)
Y’-Axis - 200mm (7.87”)
Z-Axis, machine head travel (vertical travel) - 250mm (9.84”)
mounted on linear ways
Z’-Axis, spindle sheath travel (for machining purposes only) - 80mm (3.15”)
X-Axis, carriage travel, automatic carriage - 11mm (.43”)
displacement radius - 22 mm in diameter
(ex : if tool set with a diameter of 20 mm, max machining dia
without repositoning p holder 42mm) Machining capacity - 13.5mm - 100+mm (.53” - 3.94+”)
Valve guide reaming capacity - 65mm (2.56”)
Possible Profiles - unlimited
Material to be machined - Any material, from aluminum to tempered steels
Spindle rotation speed - 300-2500 Rpm
Spindle motor - 1.5 HP
Spindle, Feed and Carriage motors - Servo Motors
Hydraulic unit - 200 Bars (2,900psi)
PC - 15 ‘‘Industrial type with touch screen
Connections - RS232 – Ethernet
Centronics – USB
Operating System - Windows 11
Electronic suspended cabinet with interchangeable fi lter
Built-in low-voltage multipoint lighting (LEDs)
Electronic depth gauge LVDT
Numerical control - NEWEN®
Software - NEWEN®
CYLINDER HEAD DIMENSIONS
Maximum height (w/o removing pilot) - 315mm (12.40”)
Maximum length - unlimited
Maximum width - Approx. 450mm (17.72”)
MACHINE DIMENSIONS
Maximum machine height - 2205mm (86.81”)
Maximum machine width - 1460mm (57.48”)
Maximum machine depth - 1327mm (52.24”)
Machine net weight - 800 Kg (1764 Lbs)
Machine gross weight - 980 Kg (2160 Lbs)
Voltage - 220V Single Phase, 50-60 Hz
Air Pressure Mini 6 bars, 90 Psi
PACKING DIMENSIONS
Height 2090 mm x Depth 1380 mm x Length 1390 mm
