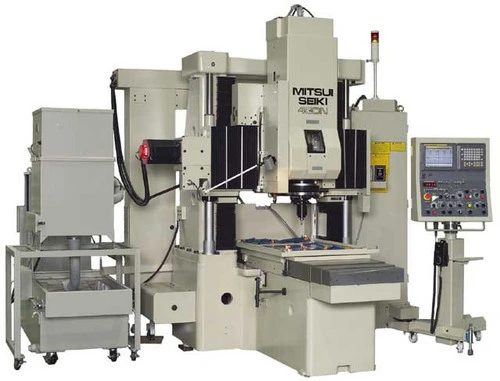

MITSUI SEIKI High Precision Jig Grinder Model 4GDN with Ultra-precision accuracy operations provides efficiency grinding of exotic materials, fine ceramics, carbide and conventional materials that demand jig grinding tolerances. Integrated circuit logic, closed loop, complete electrical equipment for operation on 3-phases 50/60Hz 200/220 Volts AC
Brand: Mitsui Seiki
Model: J4GDN
Type Jig Grinder
X axis longitudinal stroke (table traverse): 610 mm (24.02")
Y axis cross stroke (saddle head traverse): 410 mm (16.14")
Z axis vertical stroke (quill): 140 mm (5.51")
W axis vertical stroke (cross rail): 460 mm (18.11")
Distance between columns: 1,120 mm (44.09")
Maximimum Distance from table top to wheel collet: 730 mm (28.74")
Table Working surface: 790 x 600 mm (31.10" x 23.62")
Max permissible load: 750 kg (1,650 lbs)v
C-Axis planetary motion 5 - 300 rpm
U-Axis infeed stroke +33 ~ -20 mm (-1.299 ~ +0.787”)
Quill chopping stroke (max.) 95 mm (3.74”)
Quill chopping cycle (within 25 mm stroke) 200 cycles / min
** Request formal quote for fell details of accuracies, spindle speeds and other specifications
Dimensions:
Length: 3,420 mm (135") x Width: 3,850 mm (152")
Machine Weight: 4,300 kgs (9,500 lbs)
