WDM 310 Series 5' x 1/4" Plate Rolls
Have one to sell?
New
The WDM 310 Series machines are built primarily for the sheet metal industry and small maintenance shops. Robust fabricated steel frame and sealed spherical roller bearings on main rolls.

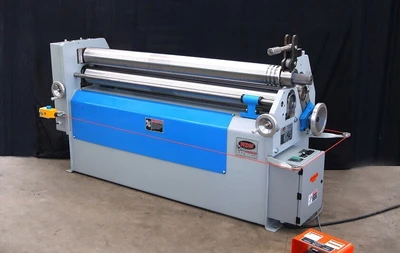

WDM Model 310-6-60 Electric Initial Pinch Plate Bending Rolls, with 5' x 1/4" Gauge capacity
Brand: WDM
Model: 310-6-60
Type: Electric Initial Pinch Plate Bending Rolls
Capacity Rating:
60” x 1/4" mild steel sheet to 20” diameter
Top Roll Diameter: 6”
Rolling speed: 14 FPM
0-20 fpm (Variable speed)
Electrics enclosures: 12 NEMA, NFPA 79 specifications
Motor: 5 HP - 230v/60/3PH
Dimensions: 89″ Length x 37″ Deep x 45″ Height
Approximate Weight: 2,800 lbs.
OPTIONS AVAILABLE:
Hardened & Polished Rolls + $3,125
Cone Attachment +$2,225
Circular Grooves (3/5, 1/2", 5/8")
Electric Digital Readout +2,800
Power Bending Adjust +$3,725
Power Disconnect
FOB - Factory Tennessee
* Subject to prior sale,
* Options Prices subject to current pricing after 11/10/2025
** Machine in video is for demonstration purposes only and shows a slightly different version of the WDM 310-6-60 model that offers extended shafts for dies to give an additional capabilities like an angle roll. Optional dies available for this machine.
