The WDM 310 Series machines are built primarily for the sheet metal industry and small maintenance shops. Robust fabricated steel frame and sealed spherical roller bearings on main rolls.

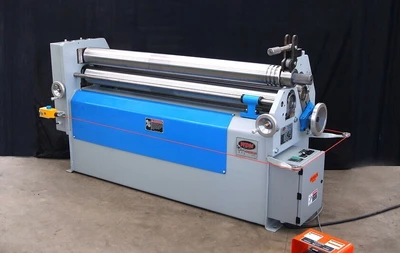

WDM Model 310-5-60 Electric Initial Pinch Plate Bending Rolls, with 5' x 10 Gauge capacity
Capacity Rating:
60” x 10ga mild steel sheet to 20” diameter
12ga to 7.5″
14/16/18ga to 6″ (approx)
Top Roll Diameter: 5”
Diameter: 5”, 1045 steel rolls
Rolling speed: 14 FPM
0-20 fpm (Variable speed)
Electrics enclosures: 12 NEMA, NFPA 79 specifications
Motor: 3 HP - 230/60/3PH
Dimensions: 80″ Length x 28″ Deep x 39″ Height
Approximate Weight: 2,500 lbs.
OPTIONS AVAILABLE:
Hardened & Polished Rolls
Cone Attachment
Circular Grooves (3/5, 1/2", 5/8")
Electric Digital Readout
Power Bending Adjust
Power Disconnect
FOB - Factory Tennessee
* Subject to prior sale
** Machine in video is for demonstration purposes only and shows a slightly different version of the WDM 310-6-60 model that offers extended shafts for dies to give an additional capabilities like an angle roll. Optional dies available for this machine.
