| Tonnage | 165 T | 149.686 t |
| Overall Length | 122" | 3.1 m |
| Between Housings | 108" | 2.7 m |
| Stroke | 12.4" | 314.96 mm |

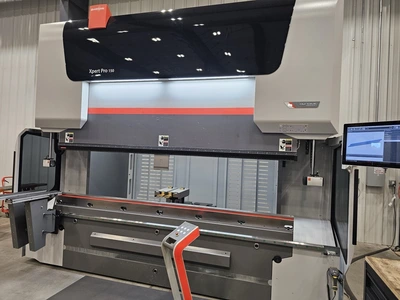

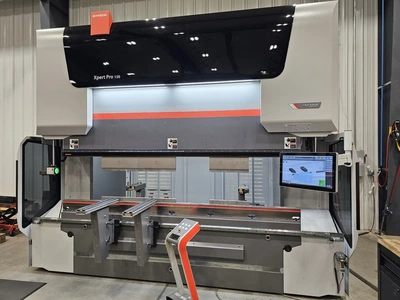

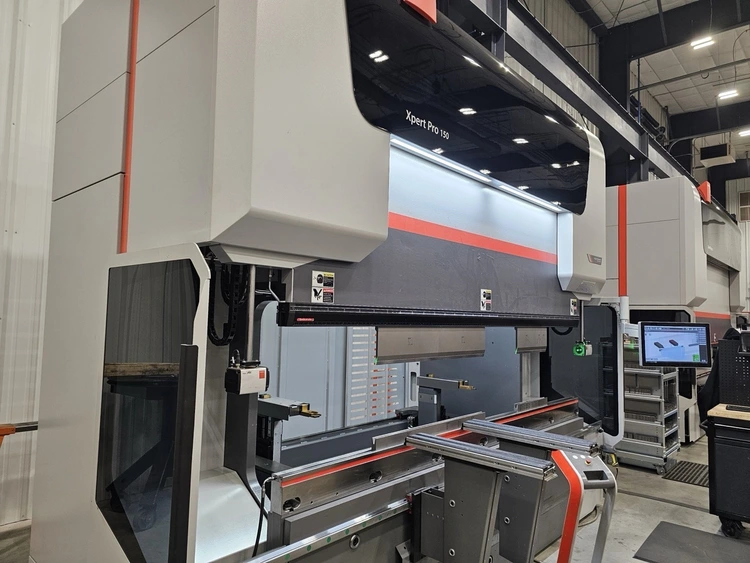

Brand: Bystronic
Model: Xpert Pro 150/3100
Year: 2022

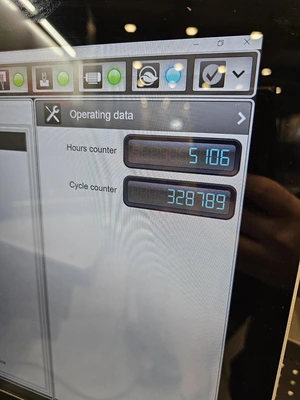

Hours: 5100
Tonnage: 165 Tons
Bending length: 122.1 in
Standard stroke: 17.7 in
Open height: 33.0 in
Distance between side frames: 108.3 in
Throat: 15.8 in
Table Width: 2.4 in
Max. back gauge range X-axis: 41.4 in
X-axis travel: 23.7 in
X-axis speed: 1536 in/min
X-axis position accuracy: 0.0016 in
R-axis travel: 9.9 in
R-axis speed: 473 in/min
R-axis position accuracy: 0.004 in
Z-axis travel: 75 in
Z-axis speed: 3544 in/min
Z-axis speed for 6-axis: 2834.6 in/min
Z-axis position accuracy: 0.004 in
Y-position accuracy: 0.00016 in
Weight Approx29,000 lbs
Length, approx. [L] 164.6 in x [W] 78.7 in x [H] 134.6 in
Approx Foot print: [LF x WF x HF] 236x177x157.5 in
