PANSTONE P-V-200-3RT-PCD Molding Press
Have one to sell?
1 available

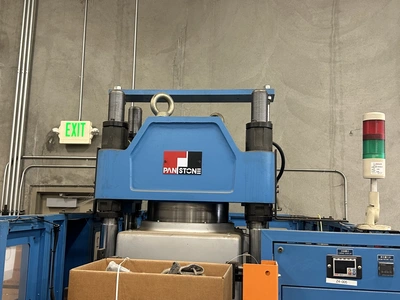

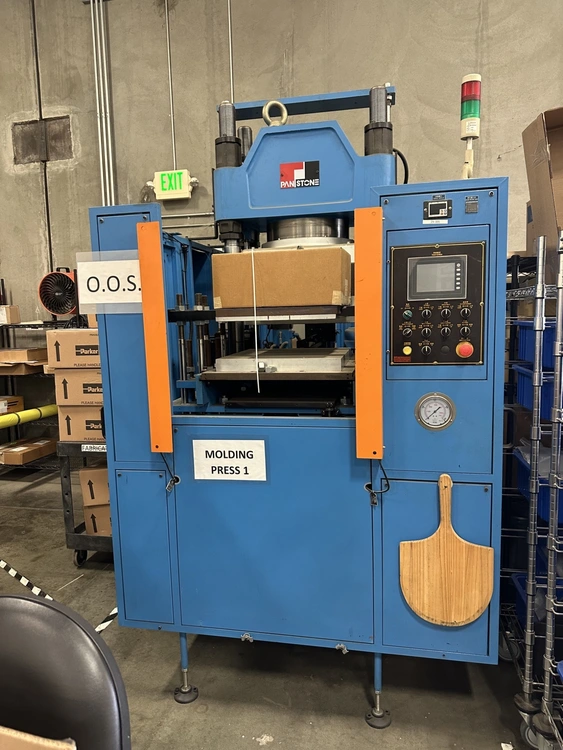

The Panstone Model PV-200- 3RT-PCD is a 200-ton vacuum compression molding machine with a 250mm stroke, a 355mm main ram diameter, and a 300mm daylight opening. Key features include the "3RT-PCD" designation, which indicates a double station with a three-plate mold opening system and a pneumatic lock pin system for force transfer. This model is designed for producing rubber products and comes with a PLC control and a touch screen interface.
Make: Panstone
Model: PV-200- 3RT-PCD
Type: Molding Press
Hours: Less than 25
Clamping Force: 200 Ton
Working Pressure: 210 kg/cm2

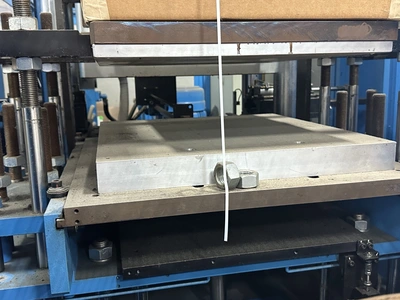

Heating Platen Size: 450x480mm
Daylight: 300mm
Main Ram Diameter: 355mm
Stroke of Main Ram: 250mm

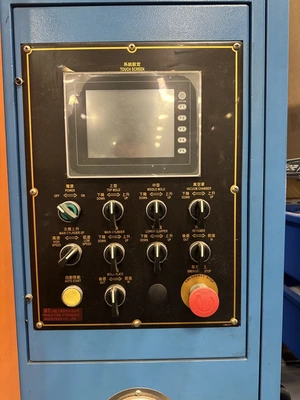

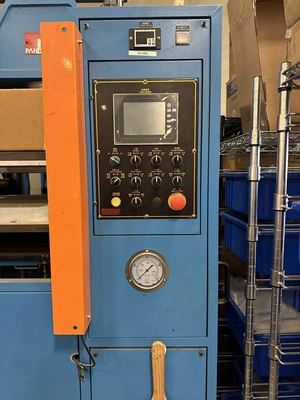

Control System: PLC control with a touch screen
Main HP: 10
Special Features:
- Vacuum Compression: The machine is a vacuum compression molding machine.
- 3RT Mold Opening System: This is a three-plate mold opening system that works with the double station.
- Pneumatic Lock Pin System: A pneumatic lock pin is used for force transfer from the piston plate to the mold.
- Double Station: The press has two stations for simultaneous operation.
PCD (Poly Crystalline Diamond): This refers to the type of runner system used in the press. PCD is a material known for its hardness and resistance to wear, which is beneficial for certain molding applications.
** Manual and Diagrams available
TERMS:
Location Livermore, CA - “AS-IS, WHERE-IS” off seller’s floor, Full Payment due prior to shipment. Machine was taken out of service in working condition and is ready for loading. Buyer pays for removal. Immediate availability, subject to prior sale. Under power and available for in-person inspection. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
