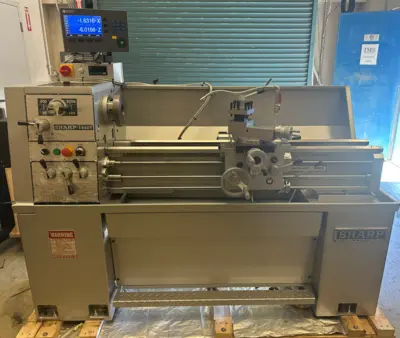

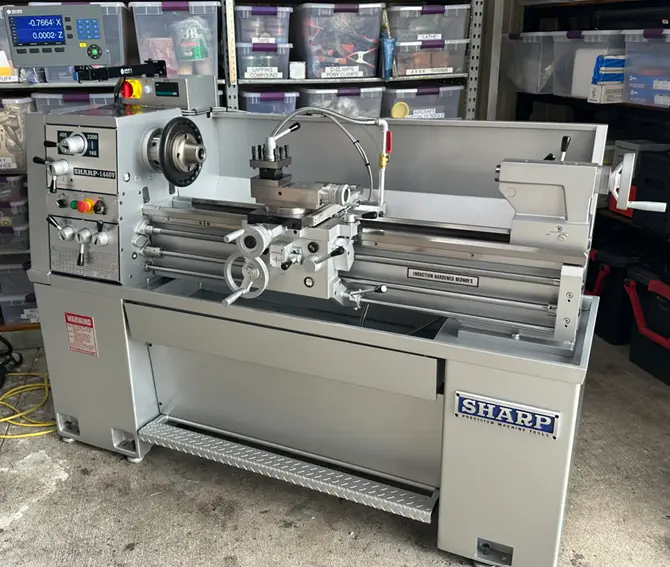

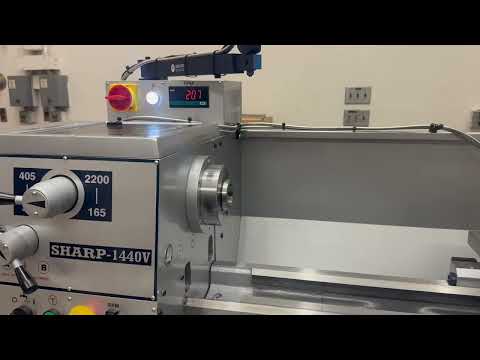

SHARP 1440V Precision Lathe 3HP
Have one to sell?
$20,499.00 USD
1 available
Used SHARP 1440V Precision Lathe equipped with hardened and ground bed ways, digital variable speed control for super-smooth operations, quick change gearbox that offers a wide arrange of threads, and Acu-Rite Solutions 2-Axis DRO203 Digital Readout System with SENC 150 5um linear encoders. This lathe was in-house demo machine that was never in production or used in a production environment and is essentially new. Machine preparation, transportation, installation, and/or 5HP motor upgrade available upon request.
Brand: SHARP
Model: 1440V
Type: Precision Lathe
- Swing / Bed: 14"
- Distance Between Centers: 40"
- Spindle Nose: D1-4 Camlock
- Spindle Bore: 1.5"
- Spindle Speed: 30 - 2,200rpm
- Spindle Motor: 3 HP
- Tailstock: MT #3, L: 4.5”, Ø1.75”
- Power:
Low Voltage: 220Vac, 60Hz, 3Ø, 10A, 4kVA
High Voltage: 440Vac, 60Hz, 3Ø, 5A, 4kVA
Note: A transformer is required for 440Vac, 60Hz, 3Ø applications.
Machine Dimensions: L: 76” x W: 29” x H: 47”
Machine Weight: 1,650 lbs
- Acu-Rite Solutions DRO203 2-Axis DRO System for X & Z-Axis
- 3-Jaw 8” Chuck
- Steady Rest (Capacity, 1/4” - 3”)
- Coolant System
- Splash Guard
- 4-Way Tool Post (Removable Gap)
- 6” Diameter Back Plate
- Threading Dial
- Center Sleeve (MT #5 x 3)
- Dead Centers (MT #3)
- Tool Kit
* Price As Equipped New: $35,000 with Accurate DRO etc...
* Pricing does not include sales tax, freight, preparation, transportation, or installation.
TERMS:
Location Windsor, CT - “AS-IS, WHERE-IS” off seller’s floor, Full Payment due prior to shipment. Immediate availability, subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
