Bradbury 21-18 Single Bend Long Folder
Have one to sell?
New
New Bradbury 21’ x 18 gauge long folder with Beck Automation Intelli-Fold™ Touchscreen Controller with free firmware updates. Norcal Machinery is one of the few companies in the USA that offer new Bradbury trim folders in 13', 21', 26' 33' and 40' lengths.
Brand - Bradbury
Model - 21-18-SN-BECK100
Type - Single Bend Long Folder
Capacity - 21' x 18 Gauge
Working Length - 21 ft.
Bending Capacity:
0.048” Gauge Carbon Steel, 50,000 PSI Maximum Yield on a 1.0” Minimum Bend
0.040” Gauge Carbon Steel, 65,000 PSI Maximum Yield on a 0.50” Minimum Bend
0.031” Gauge Stainless Steel, 50,000 PSI Maximum on a 1.0” Minimum Bend
0.063” Aluminum, 35,000 PSI Maximum Yield
Hems not recommended above 24ga. carbon steel
Total Hinges (No.) - 5
Powered Hinges – Lower Beam (No.) - 3
Rotation range - 145°
Cycle time for 90 degree bend approx - 4 seconds
Back Gauge Depth - 38"
Motor - 10HP
Incoming Power - 460V, 3 Phase, 60 Hertz, WYE Connection
Dimensions (Approx) - 307"W x 70"D x 79"H
Weight (Approx) - 12,850 Lbs

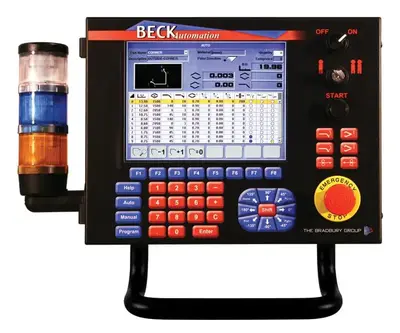

- Beck Automation Intelli-Fold™ Touchscreen Controller + free firmware updates
- Automatic backgauge positioning under the command of the Beck control
- Variable speed hydraulic power unit for quick and smooth operation
- Deep Upper Clamp Design
- Hydraulic Radius Adjustmen
- Presence Sensing Laser Device for the operator during folding
- (5) Bradbury Hybrid FeatherFinger™ Assemblies Included.
- Independently adjustable finger assemblies over the 21’ length
- Full length Emergency Stop bar
- Two Foot Pedal Control
- 100% Manufactured and supported in the USA.
- Installation review and on-site training (3 days) * Tech Expenses Extra
** Optional Slitter - +$29,990
** Optional Extra Finger Assembly - +$1,650
*** Formal factory quote upon request.
TERMS:
FOB Moundridge, Kansas, Includes Manufacturer’s Warranty, Full Payment due prior to shipment. Price includes machine prep and loading on buyers truck. Immediate availability, stock machines subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
