| Swing | 31.75" | 806.45 mm |
| Machining Length | 26" | 660.4 mm |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 3,400 RPM | 3,400 RPM |
| Turning Dia | 21" | 533.4 mm |

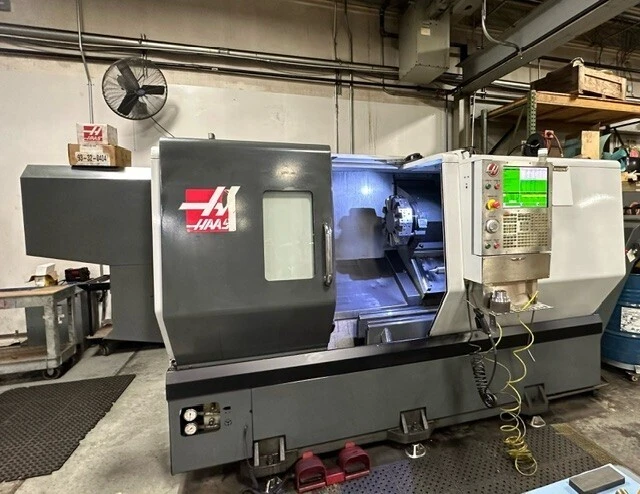

Brand: HAAS
Model: ST-30
Type: CNC Lathe
Year: 2015
Bar Capacity 3″
Chuck Size 10″
Spindle Speed 3400 RPM
Spindle Motor 30 HP
X-Axis Travel 12.5″
Z-Axis Travel 26″
Rapid Rate 945 IPM in both X and Z
Max Turning Dia: 21″
Max Turning Length: 26″
Max Part Swing: 31″
Power Supply: 220V, 70A, 3Ph
Footprint (Approx): 121"L x 79"D x 83"H
Shipping Weight (Approx): 13,660 lbs.

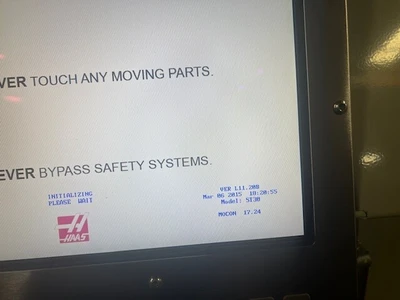

HAAS CNC Control

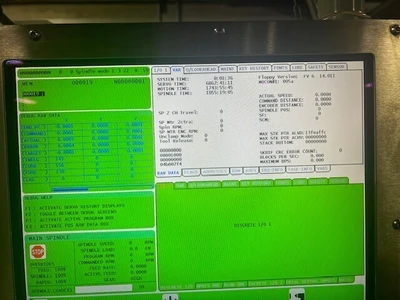

HOURS:
Servo Time: 6067:41
Motion Time: 1743:55
Spindle Time: 1855:19
TERMS:
Location Saylorsburg, PA - “AS-IS, WHERE-IS” off seller’s floor, Full Payment due prior to shipment.Buyer pays for removal. Immediate availability, subject to prior sale. Under power and available for in-person inspection. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
This equipment has been sold. Similar equipment available now is shown below.
