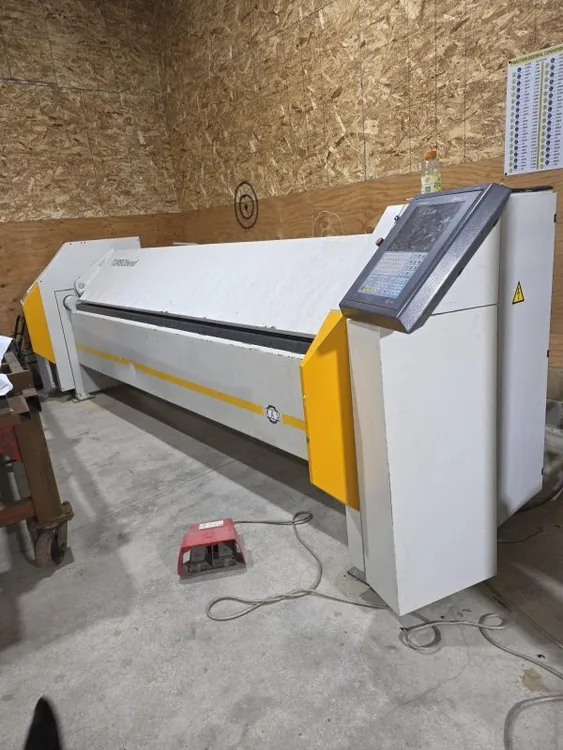

RAS 61.31 - 10' X 16 GA

Make: RAS
Model: 61.31
Year: 2011
Capacity: 16 GA x 124"

Maximum Sheet Thickness: 16 ga/1.5mm CNC
Folding Beam Adjustment: 0” – 0.217”/ 0 – 5.5mm
Maximum Length: 124”/3150mm
Motor Drive Power Upper Beam: 1 hp/.75 kw
Back gauge Depth: 0.236” – 39.4” / 6-1000mm
Motor Drive Power Folding Beam: 1.5 hp/1.1 kw
Machine Length: 170”/4320mm
Down stroke Speed: 2.5”/sec 6mm/sec
Machine Width: 55.1”/1400mm
Folding Beam Speed: 180 degrees/sec
Machine Height: 54.33”/1380mm
Back gauge Speed: (0.4” to 39.3”/8mm – 1000mm) 1.9 sec
Working Height: 33.5”/850mm
Back gauge Accuracy: .004”/.15mm
Max Upper Beam Upstroke: 0 – 4.73”/ 0 – 120mm

Approx. Dimensions: 175″ L x 64″ W x 56″ H
Approx. Machine Weight: 5,500 lbs.

TERMS:

FOB Washington - “AS-IS, WHERE-IS” off seller’s floor, Full Payment due prior to shipment. Buyer pays for removal. Immediate availability, subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
