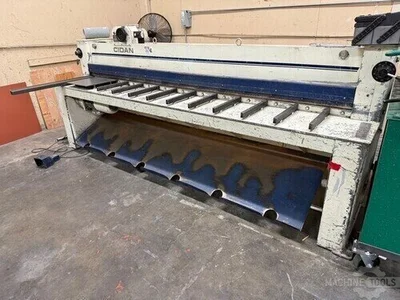

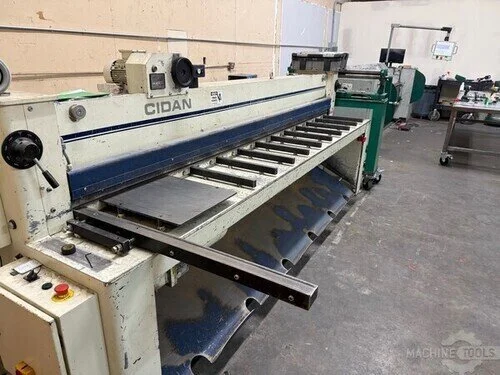

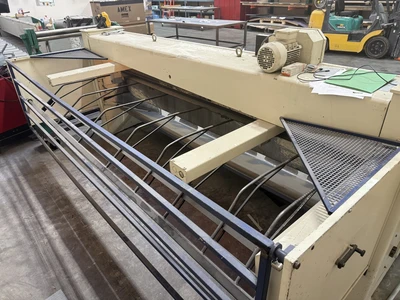

Cidan SM-R-1010 Mechanical Shear

Shears, Mechanical Gauge
Manufacturer:
CIDAN
Model:
SM-R-1010
The Cidan SM-R-1010 is a model of mechanical squaring shear designed for cutting sheet metal with precision and efficiency. It is part of the CIDAN RAPIDO shear series which are known for their robust construction, low energy consumption, and high speed.
Max Gauge10 gauge10 gauge
Length of Blade120"3,048 mm

Brand - CIDAN
Model - SM-R-1010
Type - Power Squaring Shears (Gauge)

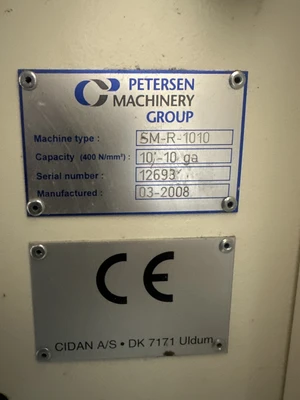

Year - 2008

Maximum Capacity: 10 gauge mild steel.
Cutting Length: 10 feet
Shear Type: Mechanical/electrical (does not use hydraulics or oil)

Operation: Capable of single or continuous cuts, with speeds up to 35 cuts per minute on shorter pieces.
Blade Gap: A notable feature is that it cuts all material thicknesses within its range (from 28 gauge up to 10 gauge) without requiring manual blade gap adjustments, which enhances efficiency.

Approx Weight: 4,806 lbs.
Approx Dimensions: 122” x 72"

Front Material Return
Motorized backgauge for accurate material positioning
Hold-down System: Utilizes a pneumatic hold-down beam
Ergonomics/Safety: The design promotes an ergonomic workflow

TERMS:

Location Hayward, CA - “AS-IS, WHERE-IS” off seller’s floor, Full Payment due prior to shipment.Buyer pays for removal. Immediate availability, subject to prior sale. Under power and available for in-person inspection. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
