Biesse Brema EKO 2.1 Vertical CNC

Vertical Machining Centers
Manufacturer:
BIESSE
Model:
BREMA EKO 2.1
Year:
2016
Country:
United States

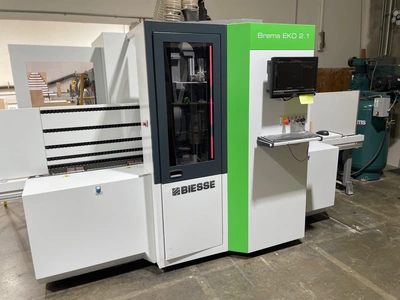

The Biesse Brema EKO 2.1 is a vertical CNC panel processing center for wood, featuring key specs like up to 3200mm X-axis working length, 900mm Y-axis, 60mm thickness, a 4.5kW electrospindle with an ISO 30 tool changer, 10-12 vertical spindles, 4-6 horizontal spindles (X/Y axis), a circular saw, laser scanning for correction, and BSolid software, designed for efficient drilling and routing of panels.
Power16 hp11.9 kW

Brand: Biesse
Model: Brema EKO 2.1
Type: Vertical CNC
Year: 2016

Table size: 102" x 35" approx
Motor: 16 HP
WIRED: 230 V, 3-Phase

Working Dimensions (X-Y-Z):
X-axis (Length): Up to 2600 mm
Y-axis (Width): Up to 900 mm
Z-axis (Thickness): 8 mm to 60 mm

Grooving saw: Diameter 120 mm, fixed in X-axis direction
Tool changer: 8-position revolving type

Control: CNC with BSolid software
Sensors: Laser reading system for panel dimension correction (X-axis) and photocells for height (Y-axis)

Dimensions & Weight:
Weight: Approximately 4,000 lbs (1800 kg)

• Condition: Very light use, for light sample making / R&D only.
• Biesse technician installed and serviced

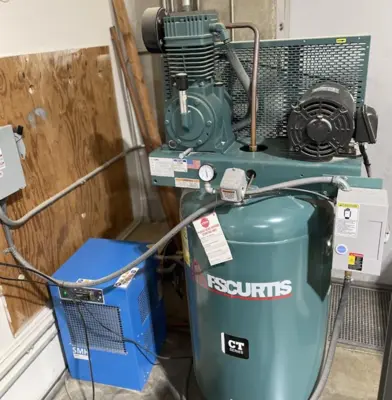

Curtis 5HP air compressor (230V 175 PSI)
SMH air dryer
Vertical panel processing.
Double gripper system for panel movement.
Import of DXF, CIX, and BPP files.

TERMS:
Location Santa Ana, CA - “AS-IS, WHERE-IS”, with all faults, off seller’s floor. Full Payment due prior to shipment.Buyer pays for removal. Immediate availability, subject to prior sale. Under power and available for in-person inspection. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
