SHARP LMV-50 3-Axis CNC Mill
Have one to sell?
1 available

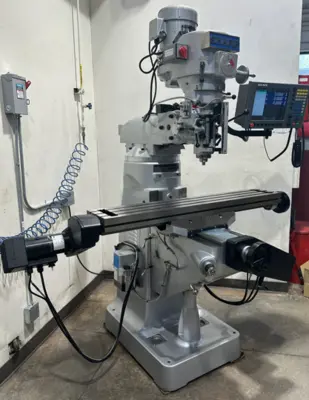

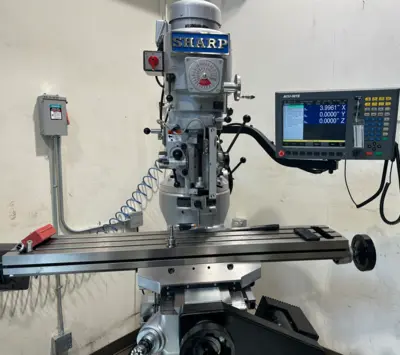

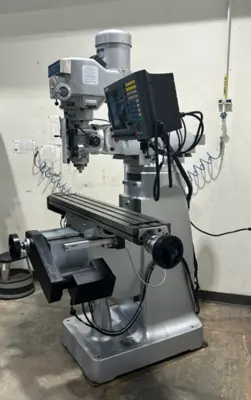

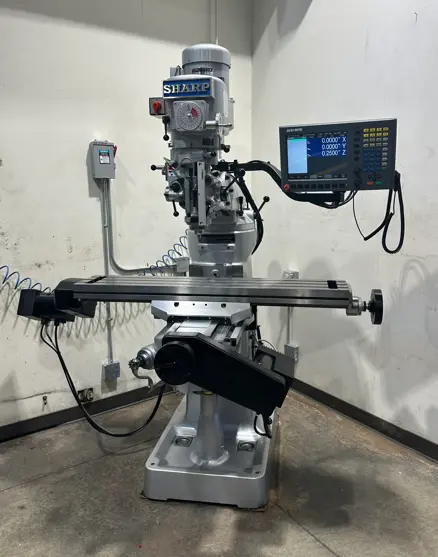

SHARP 3-AXIS CNC KNEE MILL - MODEL #: LMV-50, Slightly used in-house demo machine that was never in production or used in a production environment and is essentially new.
Brand: Sharp
Model: LMV-50
Type: CNC Mill
Year:
- Working Surface (Table): 9” x 50”
- T-Slots Number and Size: 3 / 0.625” wide
- Axis Travel: X: 32” x Y: 12” x Z: 5” x W: 16”
- Ram Travel: 12”
- Spindle to Column (Min-Max): 6.75” - 18.5”
- Spindle Nose to Table (Min-Max): 2.125” - 18”
- Spindle Motor: 3hp
- Spindle Taper: R8
- Spindle Variable Speed Drive: 60-4,500rpm
- Quill Feed 3 Speed (IPR): 0.0015”, 0.003”, 0.006”
- Quill Diameter: 3.375”
- Head Swivels: 360°
- Head Tilt (left to right): 45°
- Head Tilt (up & down): 45°
- Power:
- CNC: 120Vac, 1ph, 60Hz, 20A, 2.4kVA
- Spindle: 220/440Vac, 3ph, 60Hz, 8/4A, 3kVA
- Machine Dimensions: W: 7’ x D: 6.5’ x H: 6.75’
- Weight: 2,700lbs
STANDARD::
- Hardened & Ground X, Y, & Z Ways
- Turcite B Coating X & Y Gibs
- Precision Ground and Flaked Table
- Unique Double Nut Backlash System
- Double Fan Cooling System
- Cutler Hammer On/Off Switch
- Front and Rear Way Covers
- One Shot Lube System
FEATURES:
- Acu-Rite MillPWR G2 3X
- SENC 1um Linear Encoders X, Y, & Z
- 3hp Spindle Motor
- Variable Speed Drive (60-4,500rpm)
- R-8 Spindle Bore
- Dual Cooling Fans
- Meehanite Casting
- Hardened Chrome Ways
- Self-Lubricating Motor Shaft Extends Pulley Life
- Abec-7 Super Precision Spindle Bearings
INCLUDED ACCESSORIES:
- Automatic Lubrication System
- Power Draw Bar System
- Power Knee Feed (W-Axis)
- Tool Kit
*Pricing does not include sales tax, freight, transportation, or installation.
TERMS:
Location Mountain View, CA - “AS-IS, WHERE-IS” off seller’s floor, Full Payment due prior to shipment. Immediate availability, subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
