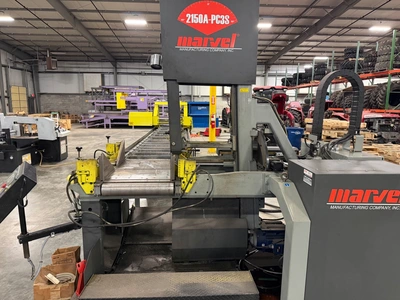

MARVEL 2150A-PC3S-60 Vertical Band Saw
Have one to sell?
1 available
The MARVEL 2150A-PC3S-60 is a 20" x 25" vertical tilt-frame, automatic band saw with PC3S controls, designed for high-speed cutting and miter cutting up to 60° left and right. It features a 10 HP motor, 30-725 FPM blade speed, 1.5" blade width, and a hydraulic, 3° canted column design for increased structural efficiency.
Key Technical Specifications
Cutting Capacity (H x W): 20" x 25"
Capacity @ 45°: 20" x 17"
Capacity @ 60°: 20" x 11.25"
Blade Size: 18′ 2″ long x 1.5" wide x .05" thick
Blade Speed: 30 – 725 FPM (Infinitely Variable)
Main Motor: 10 HP (208V/230V/460V/575V, 3ph)
Blade Tension: Hydraulically controlled, 45,000 psi
Feed Type: Direct Force Sensing Electric Ball Screw Feed (0 – 350 lbs)
Control System: PC3 (Programmable Control, See Below)
Weight: ~8,300 lbs
Tilting Column: Up to 60° left and right
Automatic Operation: Features a servo-driven shuttle feed
Blade Guides: Rotating Easy Load Combination Carbide and Ball Bearing
Structure: 3° canted column for improved structural cutting
Safety: Jammed Blade Protection, out-of-stock shut down
MARVEL PC3 PROGRAMMABLE CONTROL®: Provides a Programmable Logic Control Unit with a 12” color, touch screen display. The control features graphical part programming with memory for up to 500 jobs and parts, as well as a material selection chart and customizable material library. Both blade speed and feed force are automatically set according to material type for optimal cutting performance. Job programming consists of setting the cut-off length, angle and number of pieces to be cut. Additional features include Inch/Metric capability, out-of-stock shut down device, a fast cut job option and expanded memory storage using removable media. Also includes Jammed Blade Protection that senses resistance as the column returns and stops motion to prevent blade damage.
