| Max Gauge | 14 gauge | 14 gauge |
| Length of Blade | 12' | 3,657.6 mm |
| Back Gauge | 30" | 762 mm |
| Power | 7.5 hp | 5.6 kW |
| SPM | 35 strokes/min. | 35 strokes/min. |

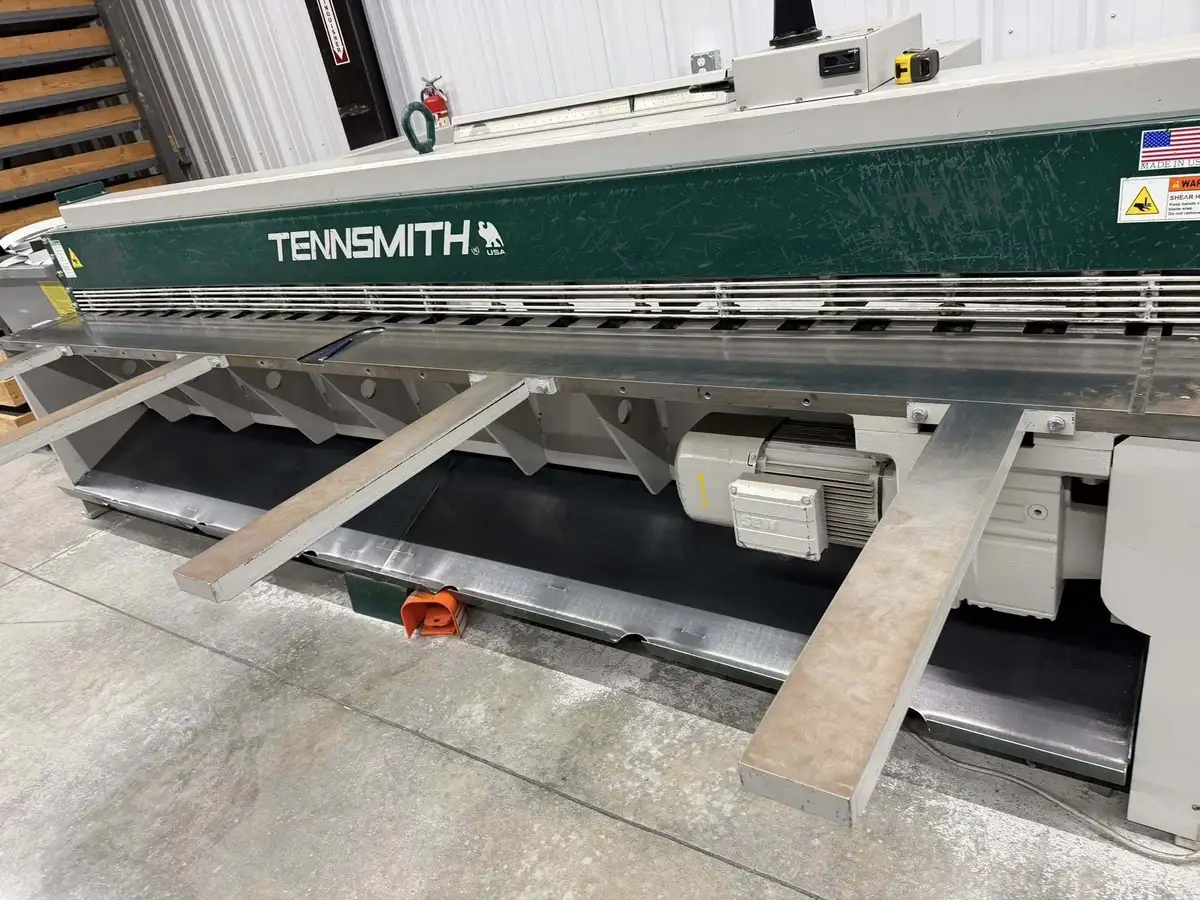

Brand: Tennsmith
Model: LM1214
Type: Mechanical Shear
Mild Steel Capacity: 14 gauge (2.0mm)
Stainless Capacity: 18 gauge (1.3mm)
Cutting Length (inches): 145
Motor: 7.5hp 60hz
Strokes: 35/minute

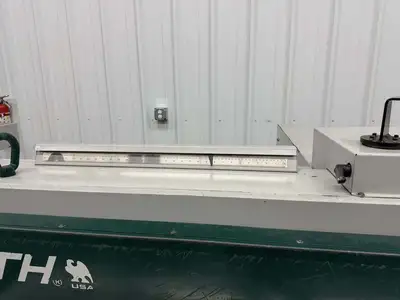

30 inch 2x back gauge system
Weight (pounds): 7530
Dimensions (LxWxH): 164 x 72 x 56
Unique 2x back gauge system for rapid adjustments
Four edge high carbon /high chromium blades (3 good edges left)
Independent self-leveling material hold down feet with neoprene inserts
Reversible motor with controls for single, continuous, and job stroke cycles
Precision machined table with hand well
Dual inch / metric inlaid bed scales
Non-metallic gibs.
Productivity Package Includes
Options Included:
Front support arms
Front air-operated return sheet support system
TERMS:
Location Spokane, Washington - “AS-IS, WHERE-IS”, with all faults, off seller’s floor. Full Payment due prior to shipment. Buyer pays for removal. Immediate availability, subject to prior sale. Under power and available for in-person inspection. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
