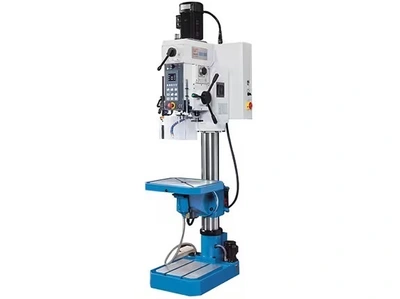

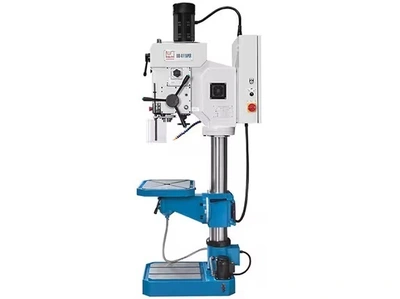

Brand: Knuth
Model: SSB-40-F Super
Type: Drill Press
WORKING AREA
Drilling capacity 1.57 in.
Table set up area 21 in. x 17 in.
Tapping capacity, steel M 24
Throat 13 in.
Spindle nose-to-table surface distance 23 in.
Table swivel range (max.) ± 50°
Quill stroke 7 in.
Manual table travel 21.26 in.
Powered table travel 16.93 in.
Column diameter 6 in.
Spindle nose-to-foot distance 47 in.
HEADSTOCK
Speed range 60 rpm - 2600 rpm
Spindle mount MT 4
FEED
Quill feeds 0.0039; 0.0079; 0.0118; 0.0157; (4) in./R
DRIVE CAPACITY
Motor rating main drive 2.7 Hp
MEASURES AND WEIGHTS
Overall dimensions (length x width x height) 35 x 26 x 88 in.
Weight 1243 lbs
Touchscreen controller, thread cutting function, automatic spindle feeds, motorized table height adjustment, protective shield, LED work lamp, coolant system, operating tools, operator manual
Ideal for drilling, countersinking, reaming and tapping
• Heavy construction with thick-walled column and large throat
• Base, column, table and gear head are made of premium high-quality cast iron

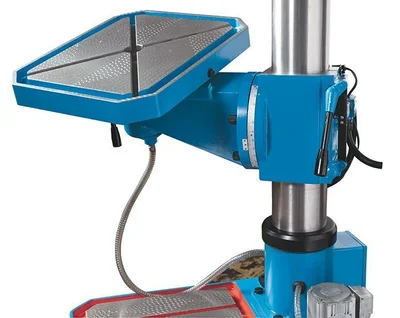

• Large drill press table with circumferential coolant groove, height adjustment, and ± 45° swivel range

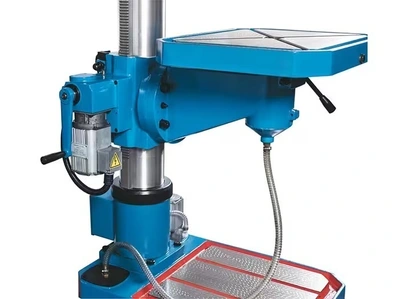

• Table height adjustment via a powerful motorized drive
• The auxiliary gears run in an oil-bath for maximum reliability and minimum wear
• 4 automatic drill feeds with electromagnetic clutch control and automatic shut-off when reaching the limit stop
• Easy handling of the machine ensures effortless operation in a production environment
• Thread-cutting feature is standard
Modern operating concept with rugged touchscreen display
• 8" touchscreen features a rugged, resistant surface
• No programming skills are required for the modern, patented control system
• The infinitely variable spindle speed can be controlled at the display and is easy to read
• The control system assists the operator with the selection of the correct rpm and feed speed
• The system recommends cutting parameters based on bore diameter and material, which also may be accepted automatically
• The depth stop is set electronically at the display
• Measuring units for input and display can be selected by the operator (mm or inch)
• Various alarm screens warn the operator in case of operational errors
• The high-performance coolant system also is activated at the touchscreen
• The system features an operating hour counter
Packaging and handling - + $375
Strong base, machine wrap and skeleton crate if shipped by dry van. (not recommended for large machines)
- Strong base and machine wrap if shipped by preferred method of flatbed.
Warranty: Standard (12) months new machine warranty, one shift operation (2,000 hrs). Machines below $30,000, covers parts only. Warranty commences upon delivery of machine. Consumables and operator misuse are excluded. Any damage to machine as a result from incorrect setup, misuse, negligence, poor maintenance, or other circumstances beyond our control is not covered under warranty.
Technical Phone & E-mail Support
Free for as long as you own the machine.
