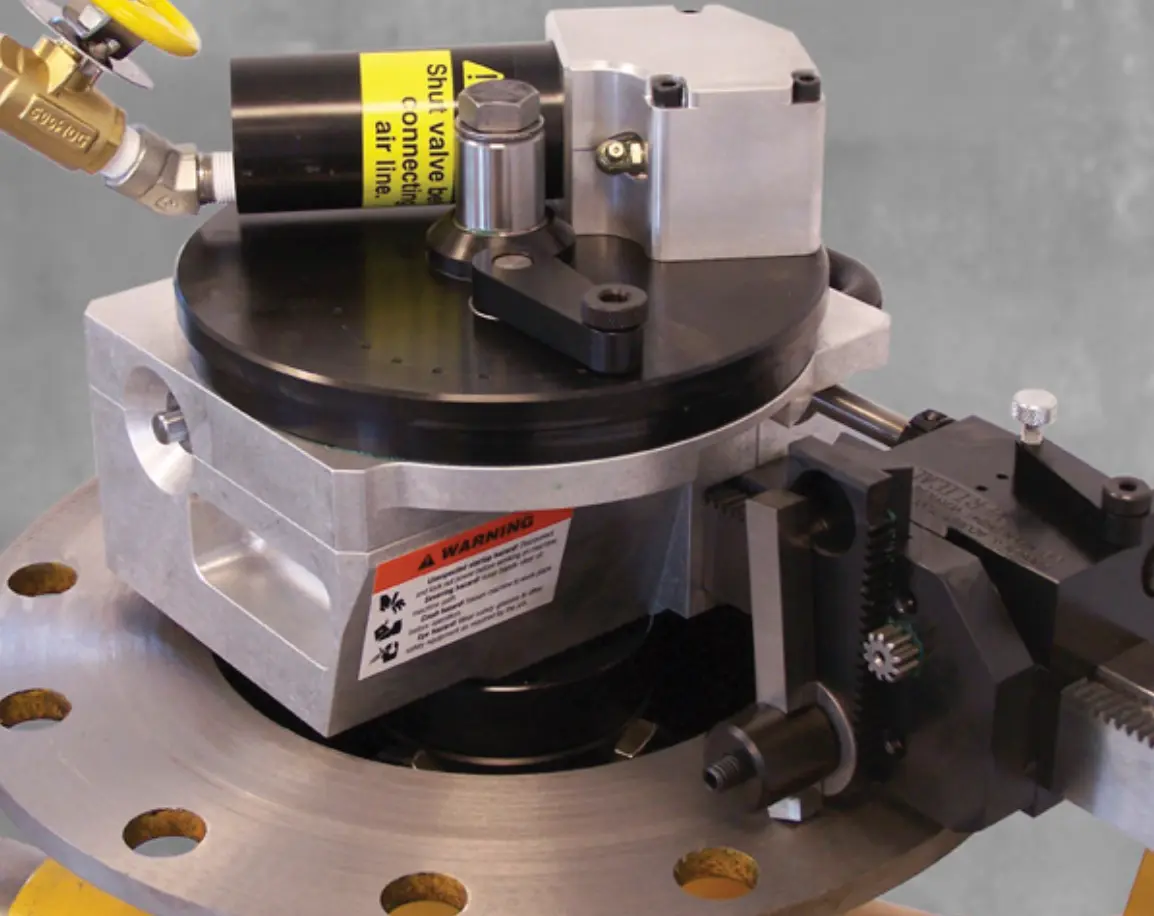

A two-piece mounting system makes this low profile unit easy to set up and align. Lightweight and simple to use whether you’re facing, beveling or turning valve, pipe or pump flanges. Facing diameters range from 5 to 24 inches (127 to 609.6 mm).
Brand: Climax Quick-Tech
Model: FF5000
Type: Flanger Facer
FACING DIAMETER - 5 - 24 in (127 - 609.6 mm)
MILLING DIAMETER (ID MOUNT) - Single Point Only
ID MOUNTING DIAMETER -- 5 - 18 in. (88.9 - 457.2 mm)
OD MOUNTING DIAMETER - ID Mount Only
MINIMUM SWING DIAMETER - 19 in. (482.6 mm)
POWER - Pneumatic
(1) MODEL FF5000 FLANGE FACER AIR 5-18 CHUCK
(1) MODEL BASE UNIT MODEL FF5000 CONFIGURATOR
(1) ASSY DRIVE PNEUMATIC FF5000 3RD MODEC
(1) CHUCK MTG ASSY 9 TO 14 ID FF5000
(1) CHUCK MTG ASSY 5 TO 9 ID FF5000
(1) CHUCK MTG ASSY 14 TO 18 ID FF5000
(1) DECLARATION OF CONFORMITY CE FF3 FF4 FF5 FF53
TERMS:
FOB FACTORY, NEWBURG, OR, Includes Manufacturer’s 1-Year Limited Warranty, Full Payment at the time of order for stock machines or build to order 6 -weeks or less lead times. Price includes machine prep and loading on buyers truck. Immediate availability, stock machines subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
