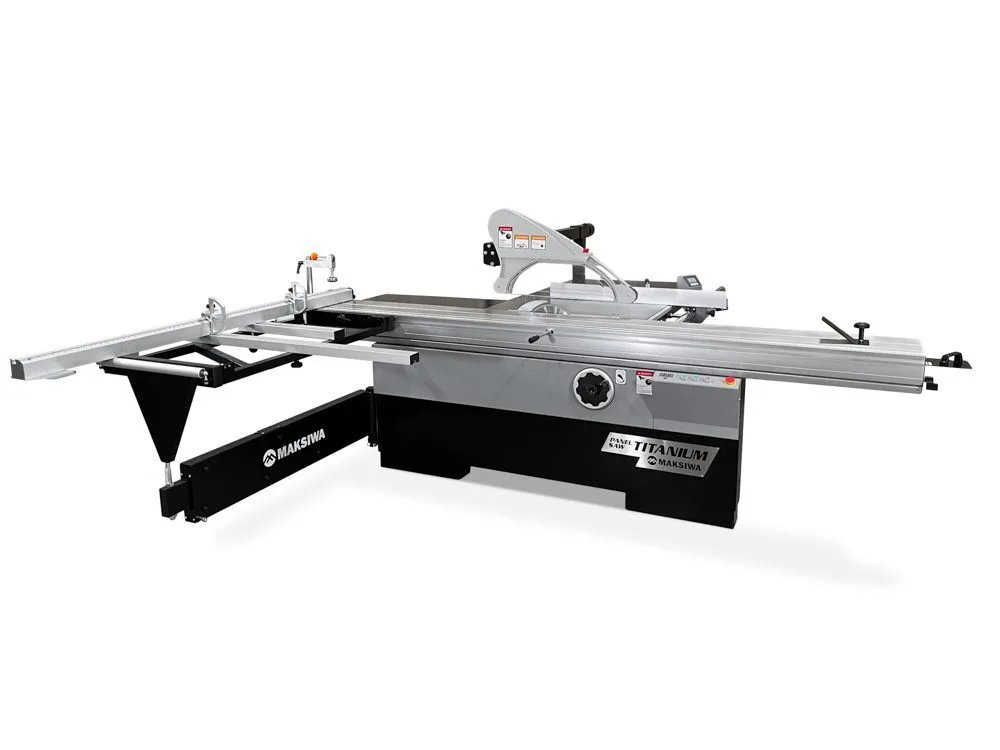

2023 MAKSIWA BM.3200.IR | Automatic Panel Saws

Brand New In the Box BMT.3200.IR - 10' Titanium Sliding Panel Saw

Electrical Specs 1 Phase 220V 30 Amp 60 Hz
Main Motor 5 HP 4000 RPM 3.7Kw
Max Blade Diameter 12" | 305mm
Main Blade Arbor 1-3/16" | 30mm
Main Blade Max Cutting Height at 90° 3-1/2"
Main Blade Cutting Height at 45° 2-7/16"
Scoring Motor 3/4 HP / 8000 RPM .55 kw
Scoring Blade 4-3/4" | 120mm
Scoring Blade Arbor 25/32" | 20mm
Scoring Blade Type Conical
Max Ripping Capacity 51" | 1300mm
Crosscut Capacity 126" | 3200mm
Crosscut Fence Capacity Closed/Open Closed: 78" | Open: 120"
Machine Dimensions 132" x 137" x 65"
Cast Iron Table Dimension 35" x 21"
Sliding Table Dimension 126" x 14"
Sliding Table Mechanism Ball Bearings
Dust Collection Port (2) 4"
Minimum Dust Collection Requirements 1000 CFM
Weight 1243 lbs
