PROFAB Strut Pro XL Strut Fabricator

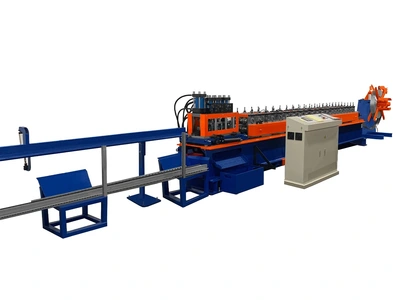

Automated Strut Fabricating Machine consisting of Roll Former, Punch, Decoiler, and Runout rack :

Brand: PROFAB
Model: Strut Pro XL
Type: Strut Fabricating Machine

Automated Strut fabricating machine available for 1-5/8” wide strut with heights of 13/16”, 1-5/8”,
2-7/16”, and 3-1/4” (separate cassette required for each size).

Production speed: 18 feet per minute

Capacity: 12GA
Power Input: Available in 230 Volt (120A) 3-phase and 460 Volt (96A) 3-phase
Hydraulic System: 20 hp
Measuring Accuracy: +/- 0.010 in/ft

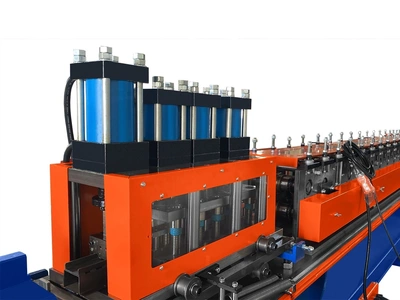

Hydraulic Cutting Die
Roll Tooling and Die Lubrication System
Programmable Lengths from 6″ to 240″ in 2″ increments
Programmable Hole Punches (continuous, ends only, no holes)
Smart Punch cut limits cutting to in between holes
Logo forming head available for custom logos on strut

Power decoiler: 6,600 lbs capacity

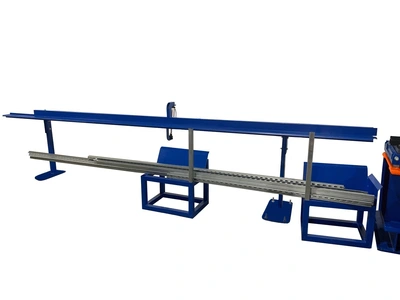

Run-Out Rack: Pneumatic operated run-out rack and collection cradle.
