2015 MORGAN-PRESS G-100T | Injection Molding Machines
Have one to sell?
1 available
2015 G-100T 20ton Vertical Injection Molder
1800 W
120 V
15 Amp

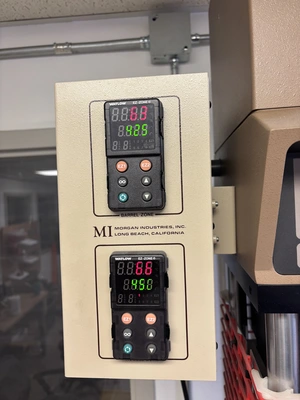

120-volt operation. 1800 watts. 15 maximum amp load. 20 tons clamping force. 6 cubic inch (4 oz) maximum single shot size. 12,000 PSI maximum injection pressure. 0-800 degrees temperature control range. 8″ x 11″ maximum mold plan area. Compressed air up to 160 PSI maximum required. mold cavity base with heaters included. Watlow OEM digital temperature controls with 2nd temperature control unit for mold bases included.
Brand: Morgan-Press
Model: G-100T
Type: Injection Molding Machine
Year: 2015
1800 Watts
Injection Volume: up to 7.5 cu. in
Injection Volume: 4 oz
Injection Pressure: 9,000 PSI
Clamping Force: 20 ton
Mold Plan Area: 8″ x 11″
Max Processing Temperature: 800 F (430 C)
