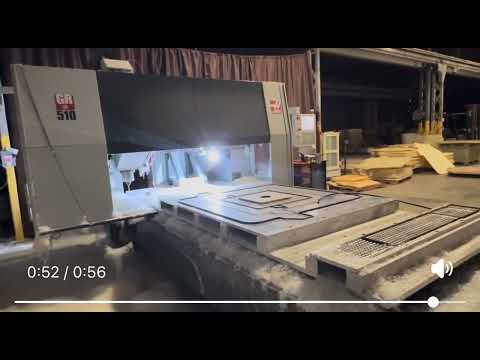

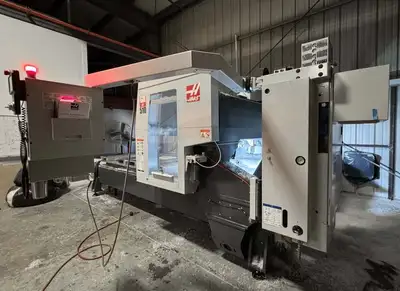

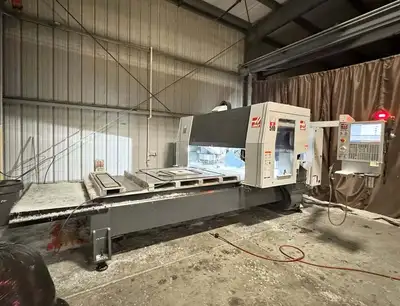

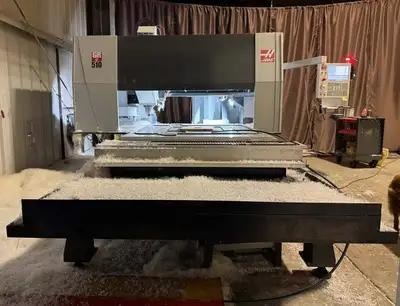

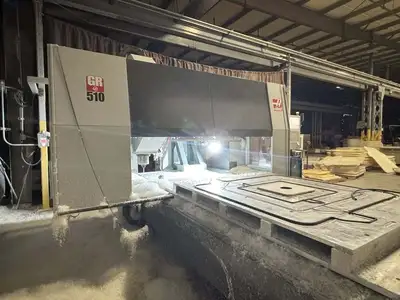

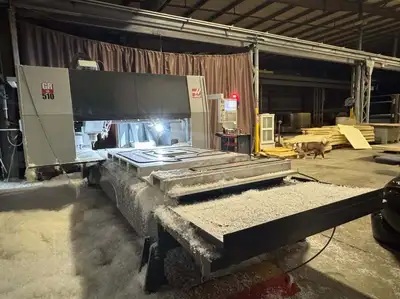

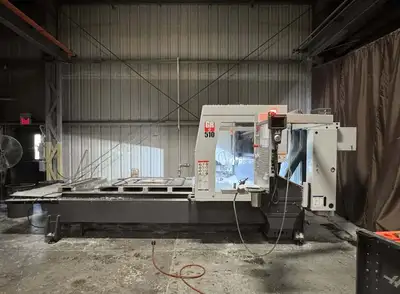

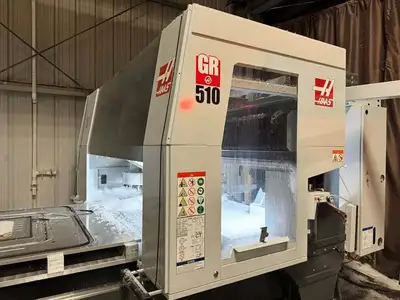

2023 HAAS GR-510 Gantry Router
Have one to sell?
1 available
The Haas GR Series gantry routers have the power to cut aluminum and other metals, as well as the speed to cut plastics and other light materials. These machines easily handle large sheets of material, or can machine small parts by the thousand. The rigid steel construction of the GR Series provides a very stable cutting platform, and a 1" thick aluminum table is standard. A traveling guard protects the operator from chips and coolant, and keeps the workspace clean.
Make: Haas
Model: GR-510
Type: Gantry Router
Year: 2023
Condition: Used – Excellent
Travels (X/Y/Z): 121″ x 61″ x 11″
Spindle Nose to Table (Min.- Max.): 2.5″ – 13.5″
Table Size: Length 122″ x Width 53″
Max Weight on Table: 6,000 lbs
Between Columns: 62″
SPINDLE:
Taper Size: 40
Spindle Speed: 10,000 RPM
Spindle Power: 15 HP
ATC: 10-Pocket Carousel Tool Changer (or 20 Tools?)
Max Tool Weight: 12 lbs
Max Tool Dia: 3.5″
FEED RATES:
Max Cutting 800 ipm
Rapids on X 800 ipm
Rapids on Y 2100 ipm
Rapids on Z 1100 ipm
Coolant Capacity: 95 gal
Air Required: 100 psi, 4 scfm
Power: 220v / 3-Phase
Overall Dimensions: 206″ x 111″ x 108″ High
Weight: 19,400 lbs
HOURS: LOW - TBD
PRICE AS EQUIPPED NEW: $217,865

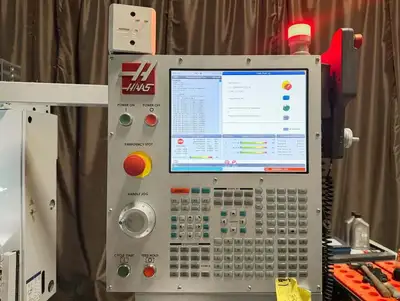

Haas CNC Control
10,000-RPM Grease Packed Spindle (Upgraded $6,195 value Included)
WIPS – Wireless Intuitive Probing System (Upgraded $7,795 value Included)
Spindle Orientation
Visual Part Programming System
User-Definable Macros
Coordinate Rotation and Scaling
CNC Control Cabinet Cooler (Upgraded $2,395 value Included)
Automatic Air Gun (Upgraded $1,695 value Included)
High Speed Machining (Upgraded $3,995 value Included)
Minimum Quantity Lubrication (Upgraded $2,795 value Included)
Tooling (Not inventoried)
Sellers Note:
HAAS GR-510 CNC machine Purchased late 2023. Comes with all tooling. Lightly used, only used to cut plastic, no metals, essentially like new. This is very apparent!
TERMS:
Location Fairfield, CA - “AS-IS, WHERE-IS”, with all faults, off seller’s floor. Full Payment due prior to shipment. Buyer pays for removal. Immediate availability, subject to prior sale. Under power and available for in-person inspection. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
