2023 HAAS GM-2 Gantry Mill
Have one to sell?
1 available

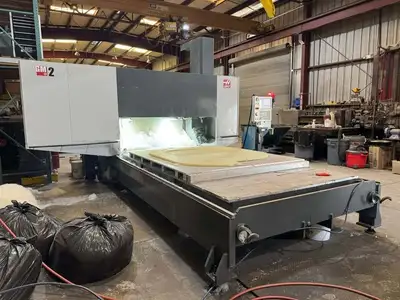

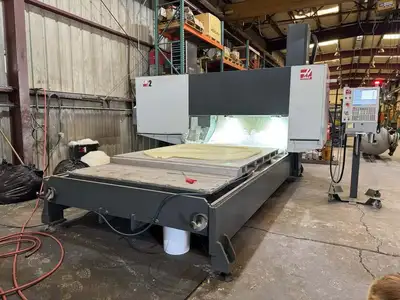

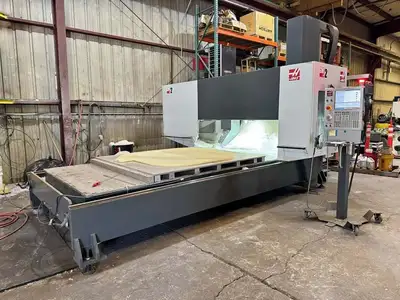

The GM-2 is a heavy-duty 3-axis gantry mill designed for large-part machining, such as airframe components, large plates, and long extrusions. The machine’s rigid steel construction provides a very stable cutting platform, and a 1" (25 mm) thick aluminum table is standard. A traveling guard protects the operator from chips and coolant, and keeps the workspace clean.
Make: Haas
Model: GM-2
Type: CNC Gantry Mill
Year: 2023
Condition: Used – Excellent
Travels (X/Y/Z): 145″ x 87.5″ x 22″
Spindle Nose to Table (Min.- Max.): 4″ – 26″
Table Size: Length 144″ x Width 72″
Max Weight on Table: 6,000 lbs
Between Columns: 75″
SPINDLE:
Taper Size: 40
Spindle Speed: 10,000 RPM
Spindle Power: 30 HP
ATC: SMTC Capacity 30+1 Side Mount
Max Tool Diameter: 2.5 in
Max Tool Weight: 12.0 lb
FEED RATES:
Max Cutting 472 ipm
Rapids on X 472 ipm
Rapids on Y 1889 ipm
Rapids on Z 1181 ipm
Coolant Capacity: 95 gal
Air Required: 100 psi, 4 scfm
Power: 220v / 3-Phase
Overall Dimensions: 226″ x 143″ x 109″ High
Weight: 20,4200 lbs
HOURS: LOW - TBD
PRICE AS EQUIPPED NEW: $328,260

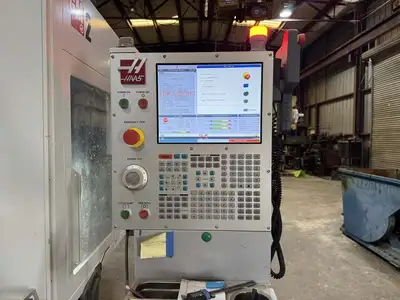

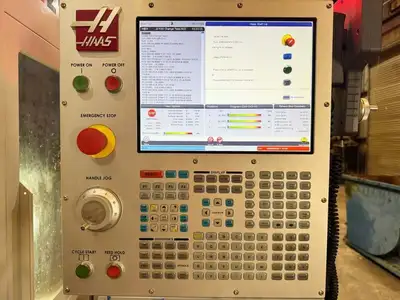

Haas CNC Control
10,000-RPM Spindle (Upgraded $7,595 value Included)
WIPS – Wireless Intuitive Probing System (Upgraded $6,795 value Included)
Spindle Orientation
Visual Part Programming System
User-Definable Macros
Coordinate Rotation and Scaling
Chip Auger
Through Spindle Coolant System - 1,000 psi (Upgraded $11,695 value Included)
Gantry Router Coolant System (Upgraded $4,095 value Included)
CNC Control Cabinet Cooler (Upgraded $2,395 value Included)
High Speed Machining (Upgraded $3,995 value Included)
Rigid Tapping (Standard)
Automatic Air Gun (Upgraded $1,695 value Included)
High Speed Machining (Upgraded $3,995 value Included)
Tooling (Not Inventoried)
Sellers Note: HAAS GM-2 CNC Gantry Mill purchased late 2023. Comes with tooling. Lightly used, only used to cut plastic, no metals, essentially like new. This is very apparent!
TERMS:
Location Fairfield, CA - “AS-IS, WHERE-IS”, with all faults, off seller’s floor. Full Payment due prior to shipment. Buyer pays for removal. Immediate availability, subject to prior sale. Under power and available for in-person inspection. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
